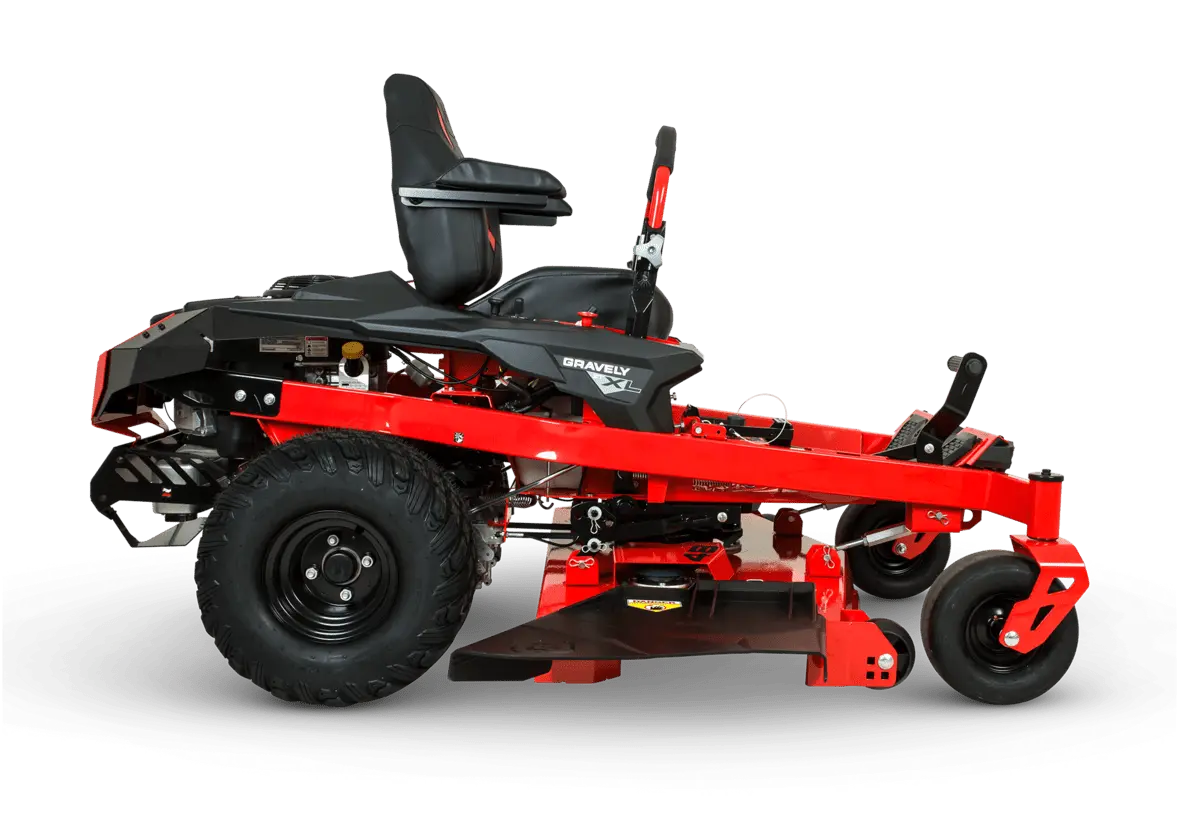

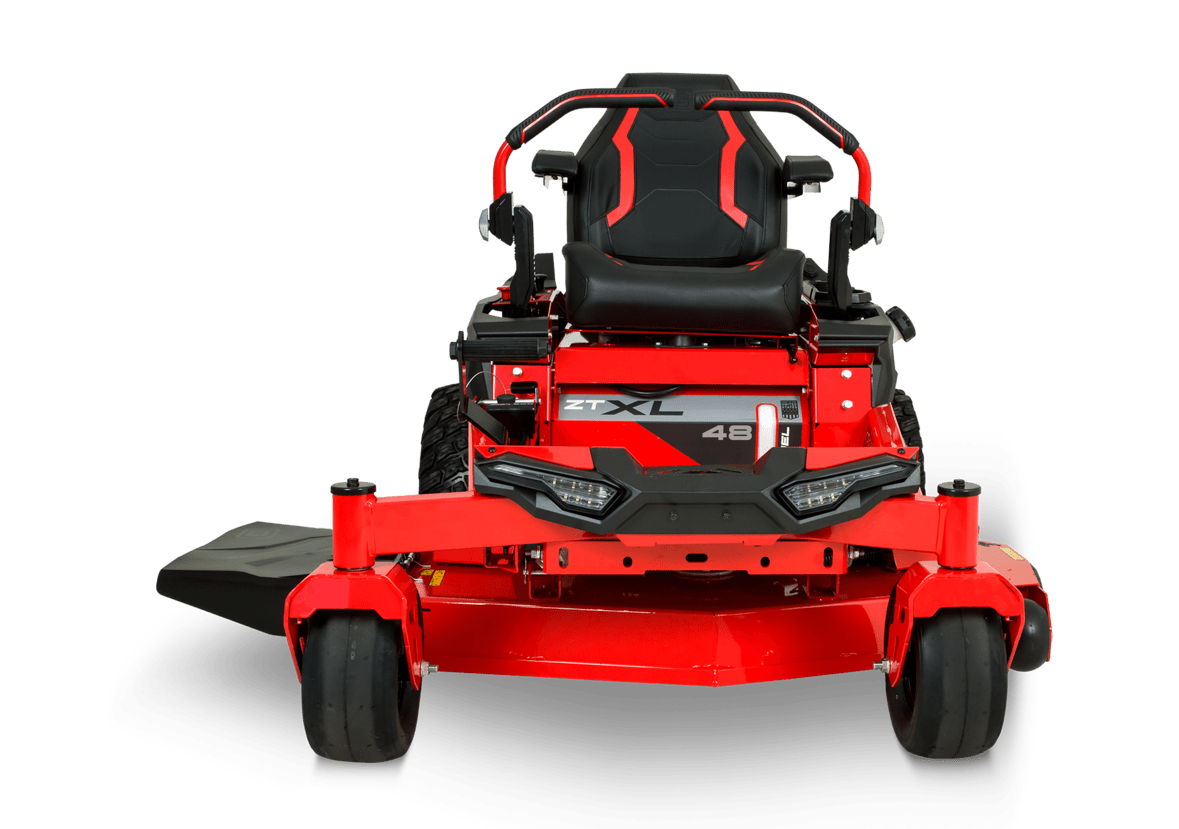

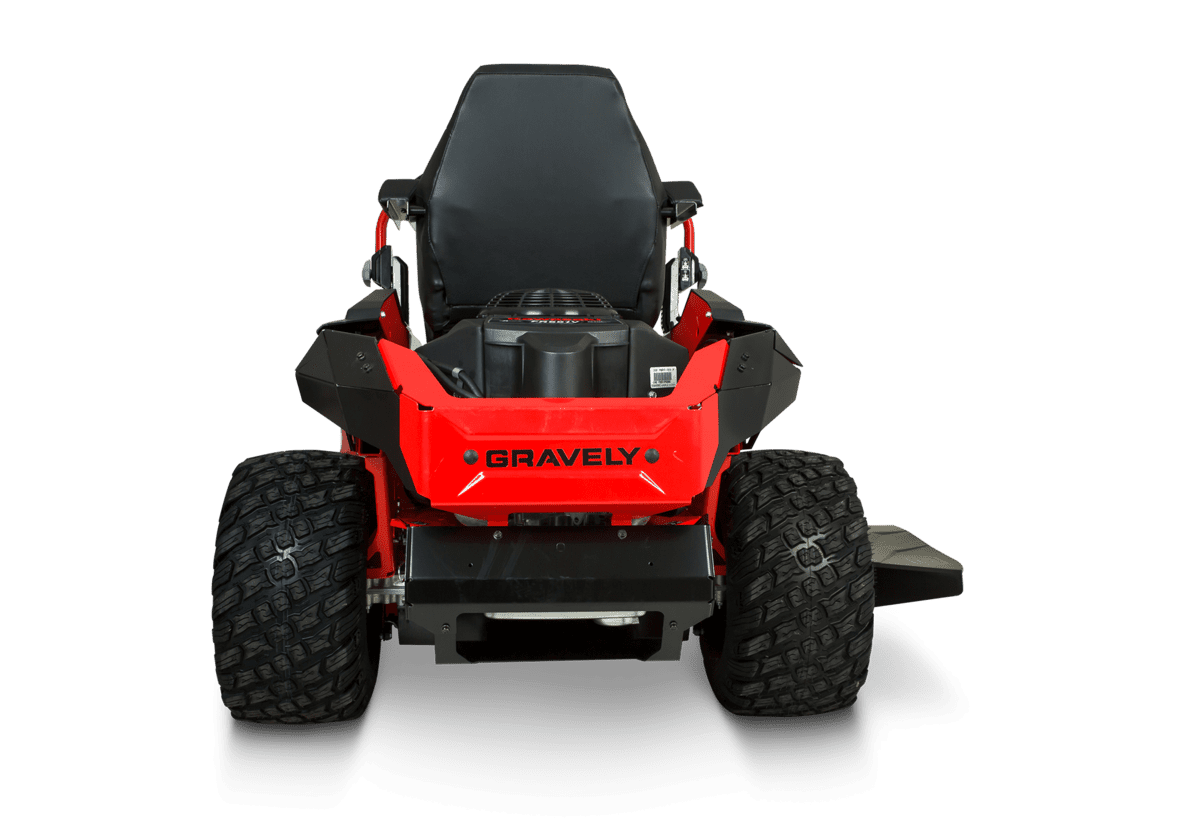

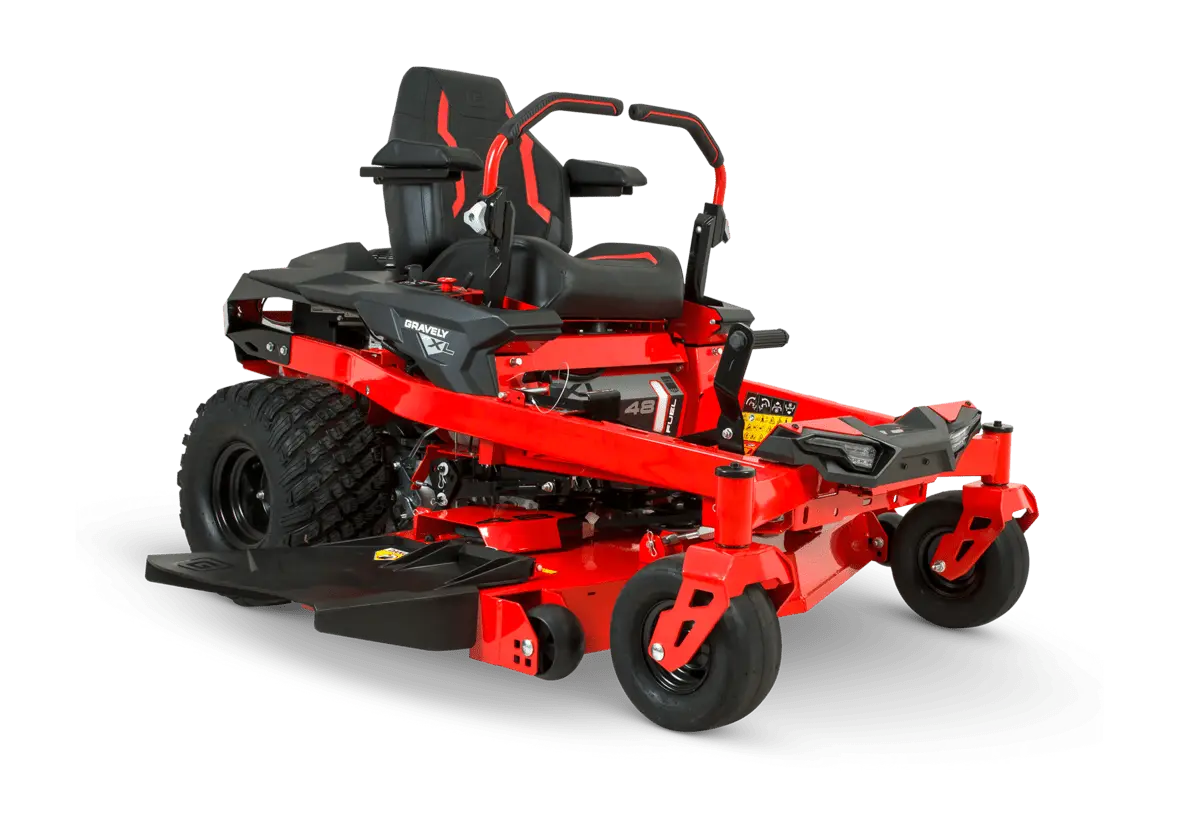

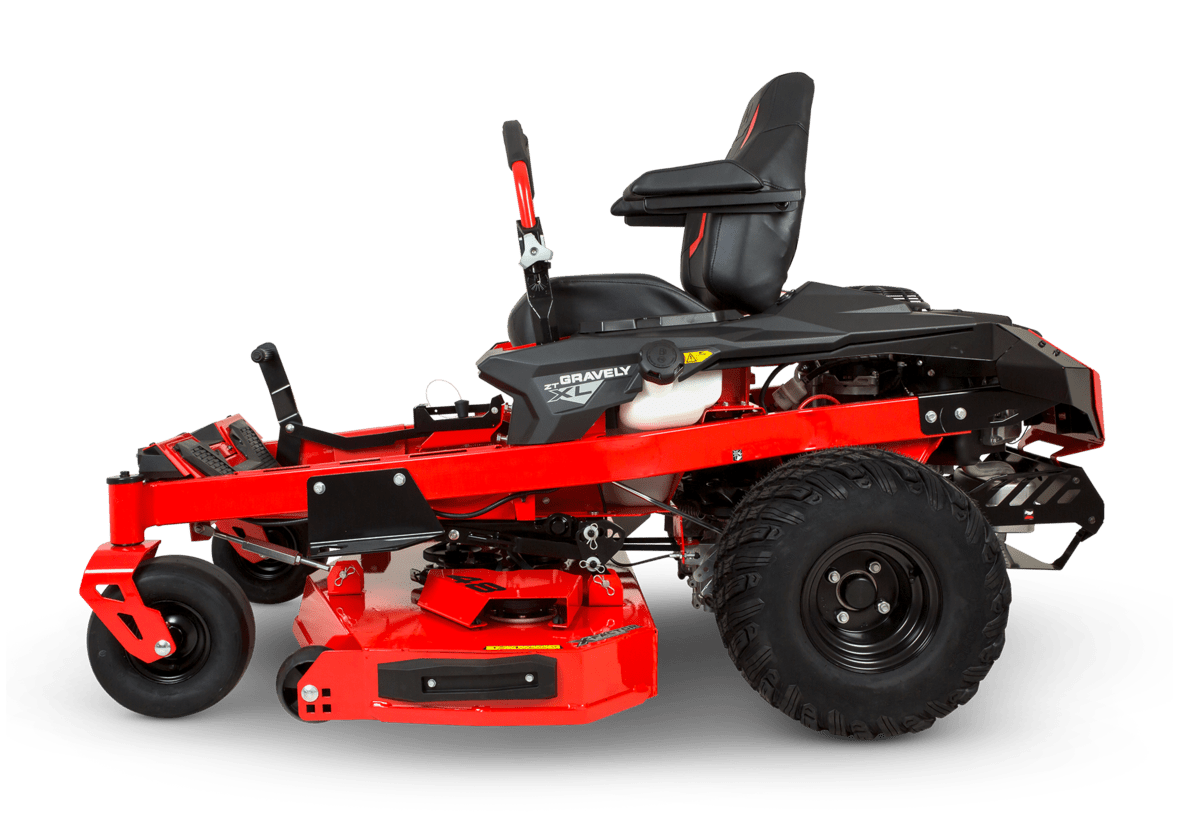

Cuts big jobs down to size, the Gravely ZT XL 48 Zero-Turn Mower delivers professional-grade performance in a durable residential package.
Built with a fully welded tubular frame, the ZT XL 48 provides exceptional structural strength and long-term stability. Hydro-Gear® ZT-2800® transaxles deliver increased torque, smoother operation and extended component life for demanding mowing conditions.
The 4.5-inch deep 11-gauge fabricated X-Factor® deck is engineered with optimised airflow to produce superior cut quality and discharge performance. The 4-point foot-operated deck lift system with 13 cutting positions allows simple and precise cutting height adjustments using an intuitive pedal and dial system.
Powered by a 23 hp Kawasaki FR691V V-Twin engine, the ZT XL 48 delivers reliable power for tackling larger residential properties. Comfort features include a bolstered high-back seat with armrests, integrated park brake, hour meter and cup holder to enhance usability during extended mowing sessions.
Designed for homeowners who demand commercial-grade durability and performance, the Gravely ZT XL 48 is built to handle bigger mowing jobs with ease.
Warranty Information
Domestic Warranty4 Year / 400 Hour Domestic Warranty
Commercial Warranty4 Year / 400 Hour Commercial Warranty
Miscellaneous
Blade(s)3
Dimension Specs
Dry Weight312.5 kg
Height1193 mm
Width1298 mm With Chute Up
Overall Length1892 mm
Zero Turn Mower Specs
Ground Speed - ForwardUp To 11.3 km/h
BrakesSteering Arm Integrated Park Brake
SeatBolstered High Back Seat With Arm Rests
Hour MeterStandard
ROPSROPS Not Supplied With Units
Cup HolderYes
Deck SystemFabricated X-Factor®
Deck LiftFoot Operated
Deck Construction11 Gauge Fabricated
Blade Tip Speed18,000 FPM
SpindlesForged Aluminium with sealed ball bearings
Drive SystemHydro-Gear® ZT-2800® Transaxles
Engine and Fuel Specs
EngineKawasaki FR691V V-Twin
Engine (cc)726 cc
HP23 hp
Fuel Capacity13.2 L
Mowing Deck Specs
Kit - MulchAvailable Optional Accessory
Cutting Dimensions
Cutting Widths48″ (1219 mm) Cut Side Discharge
Cutting Height(s)13 Cutting Positions / 38 mm – 114 mm
* Images shown may sometimes be from comparable models supplied by the manufacturer. Availability can change frequently, so we recommend contacting us to confirm current stock.
