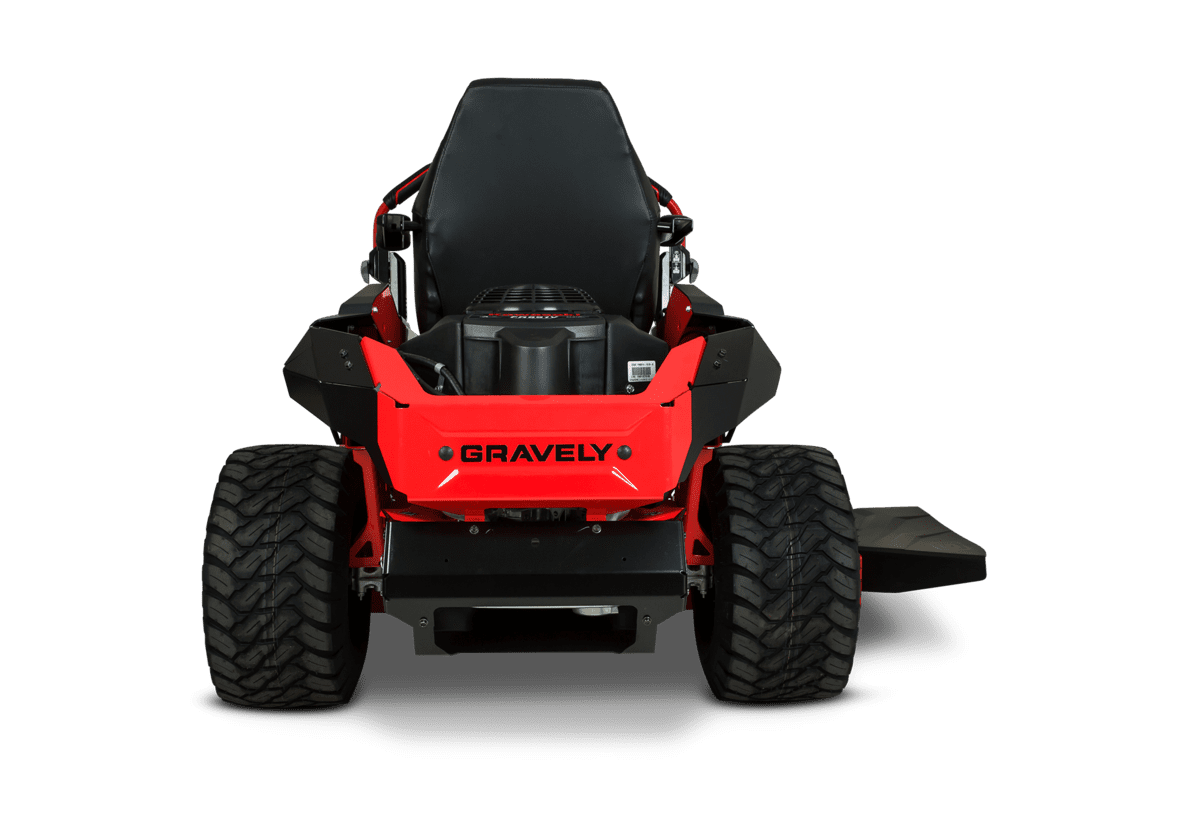

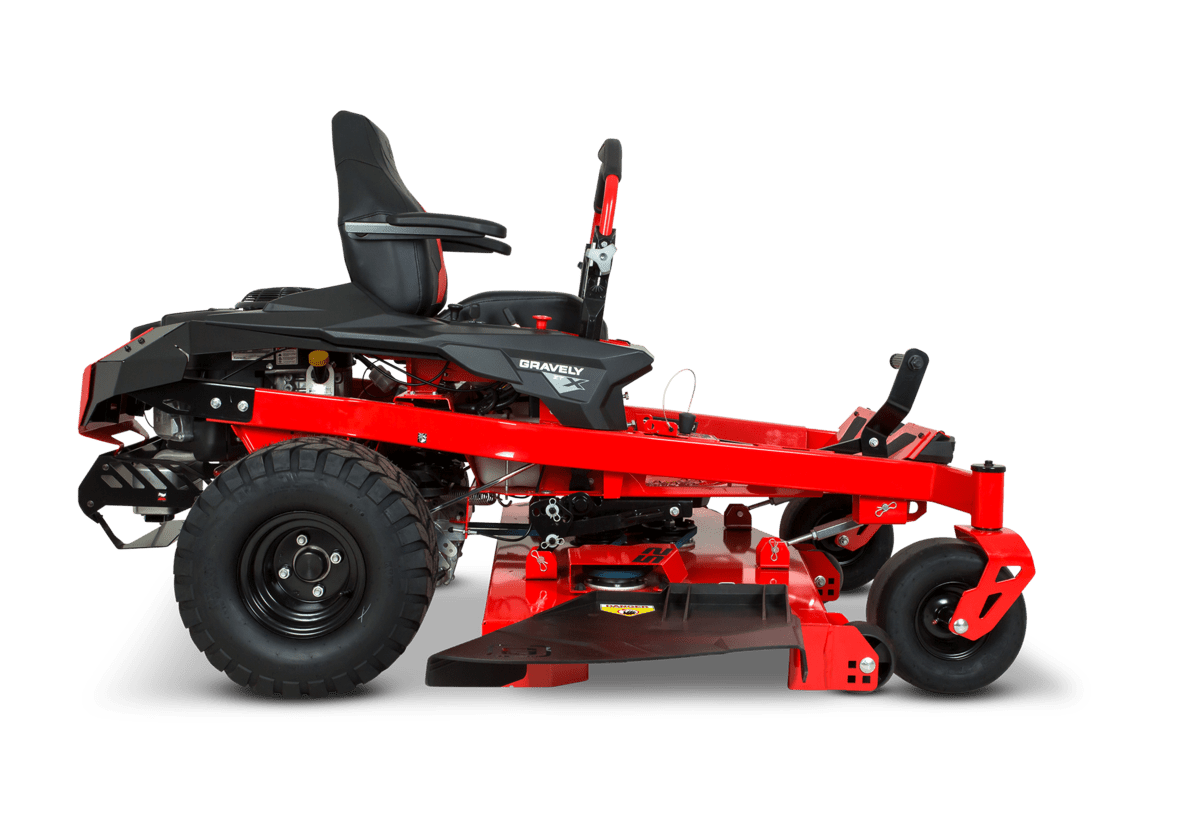

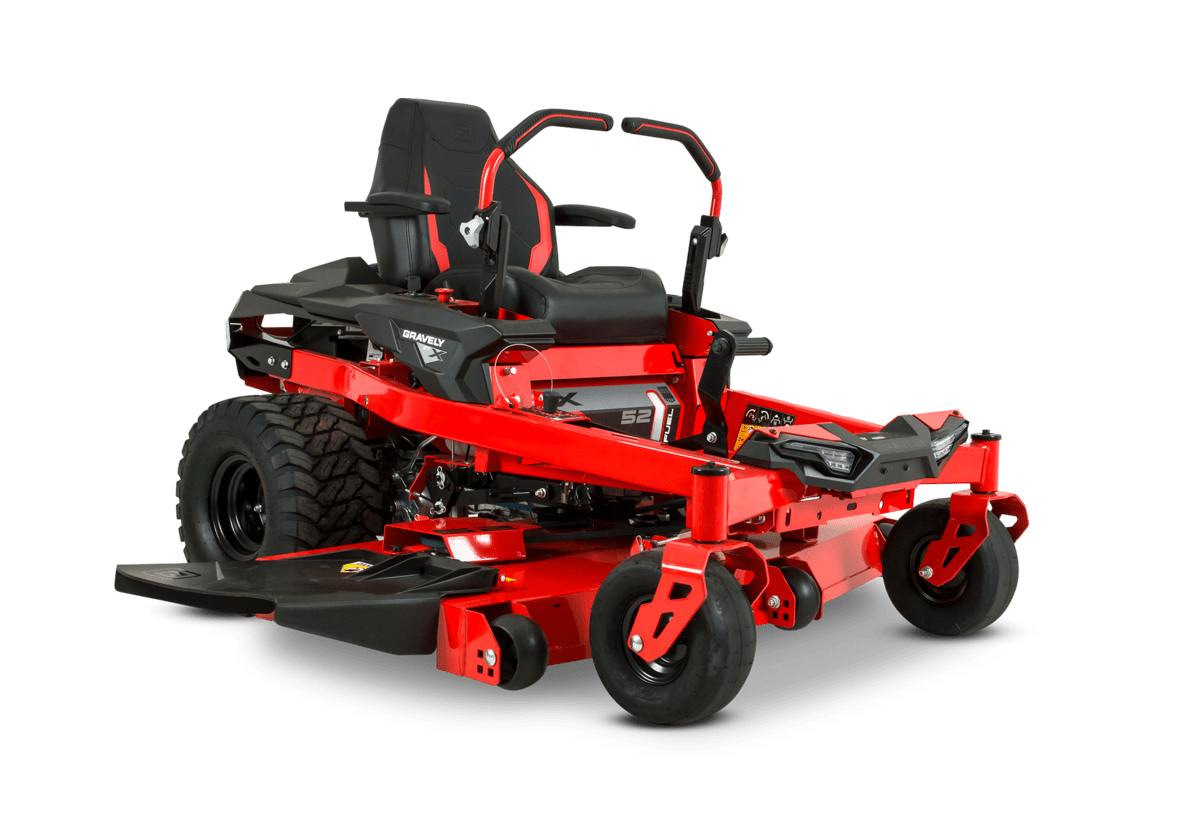

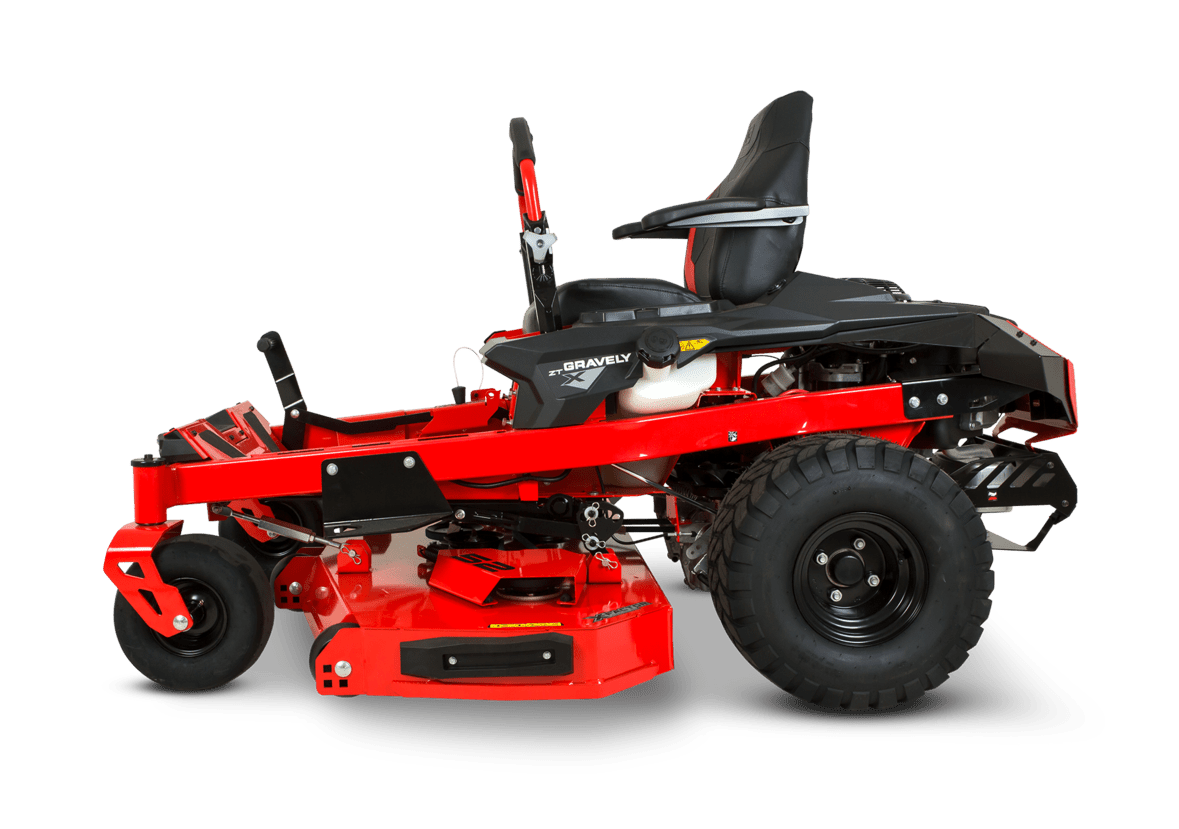

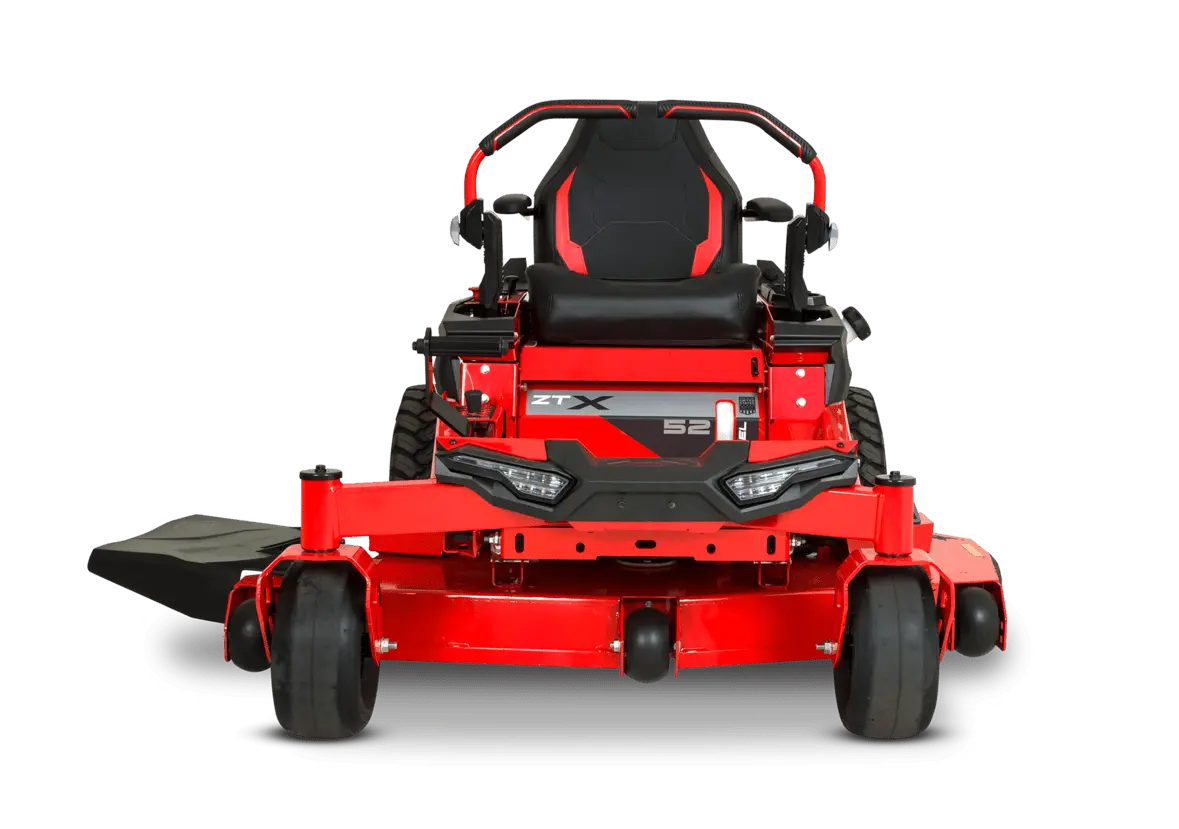

Gravely ZT X 52" Zero-Turn Mower

The Gravely ZT X 52" delivers commercial-grade precision and performance in a residential mower, featuring a deep fabricated deck and heavy-duty construction built for serious lawn care.

Key Features
  • 11-Gauge Fabricated X-FACTOR® Deck
  • 4-Point Deck Lift System
  • Fully Welded Tubular Frame
  • 23 hp Kawasaki FR691 V-Twin Engine
  • 13 Cutting Positions
  • Hydro-Gear® EZT® Transaxles
Commercial pedigree meets residential performance with the Gravely ZT X 52 Zero-Turn Mower. Designed for homeowners who demand professional results, this mower combines durability, power and cutting precision in one robust package. The 4.5-inch deep 11-gauge fabricated X-FACTOR® deck is engineered with optimised airflow to deliver outstanding cut quality and discharge performance. The 4-point foot-operated deck lift system with 13 cutting positions allows quick and precise height adjustments using a simple pedal-and-dial system. Powered by a 23 hp Kawasaki FR691V V-Twin engine, the ZT X 52 delivers strong, reliable performance across larger residential properties. The fully welded tubular frame provides a professional-grade backbone built for long-term durability. Comfort and convenience features include a bolstered high-back seat with armrests, steering arm integrated park brake, USB port, and standard hour meter. Hydro-Gear® serviceable EZT® transaxles provide smooth, dependable drive performance. Built for homeowners who take lawn care seriously, the Gravely ZT X 52 offers commercial-level performance right at home.
Warranty Information
Domestic Warranty3 Year / 300 Hour Domestic Warranty
Commercial Warranty3 Year / 300 Hour Commercial Warranty
Miscellaneous
Blade(s)3
USB PortYes
Dimension Specs
Dry Weight315.2 kg
Height1168 mm
Width1412 mm With Chute Up
Overall Length1892 mm
Zero Turn Mower Specs
Ground Speed - ForwardUp To 11.2 km/h
BrakesSteering Arm Integrated Park Brake
SeatBolstered High Back Seat With Arm Rests
Hour MeterStandard
ROPSROPS Not Supplied With Units
Cup HolderYes
Deck SystemFabricated X-FACTOR®
Deck LiftFoot Operated
Deck Construction11 Gauge Fabricated
Blade Tip Speed18,000 FPM
SpindlesForged aluminium with sealed ball bearings
Drive SystemHydro-Gear® Serviceable EZT® Transaxles
Engine and Fuel Specs
EngineKawasaki FR691V V-Twin
Engine (cc)726 cc
Horsepower23 hp
Fuel Capacity13.2 L
Mowing Deck Specs
Kit - MulchAvailable Optional Accessory
Cutting Dimensions
Cutting Widths52″ (1320 mm) Cut Side Discharge
Cutting Height(s)13 Cutting Positions / 38 mm – 114 mm

* Images shown may sometimes be from comparable models supplied by the manufacturer. Availability can change frequently, so we recommend contacting us to confirm current stock.
