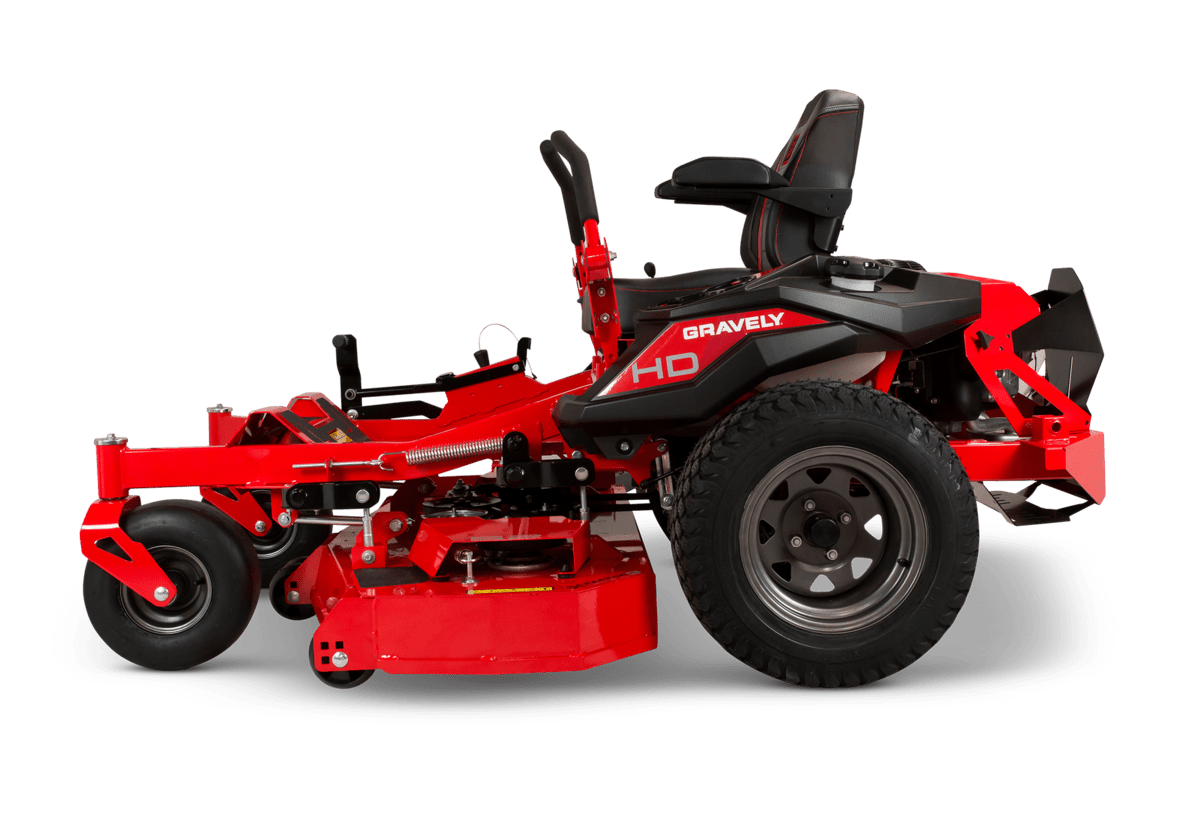

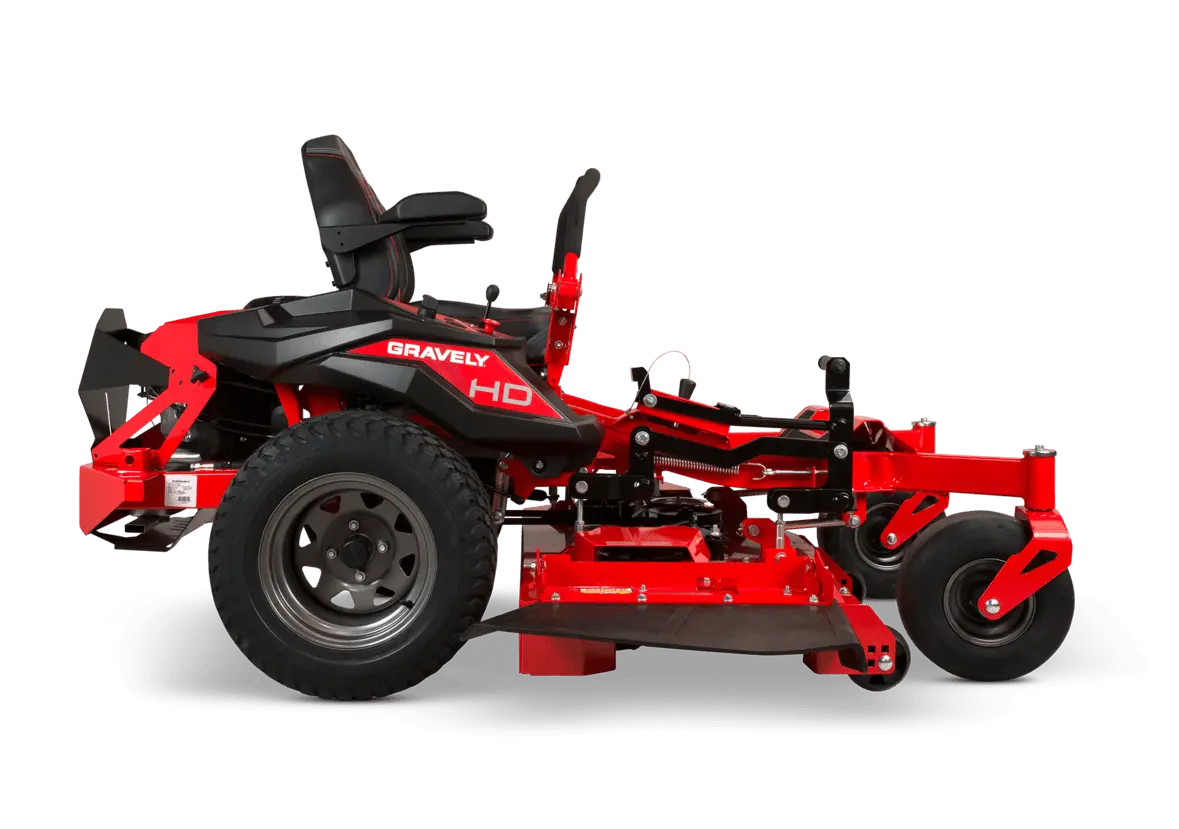

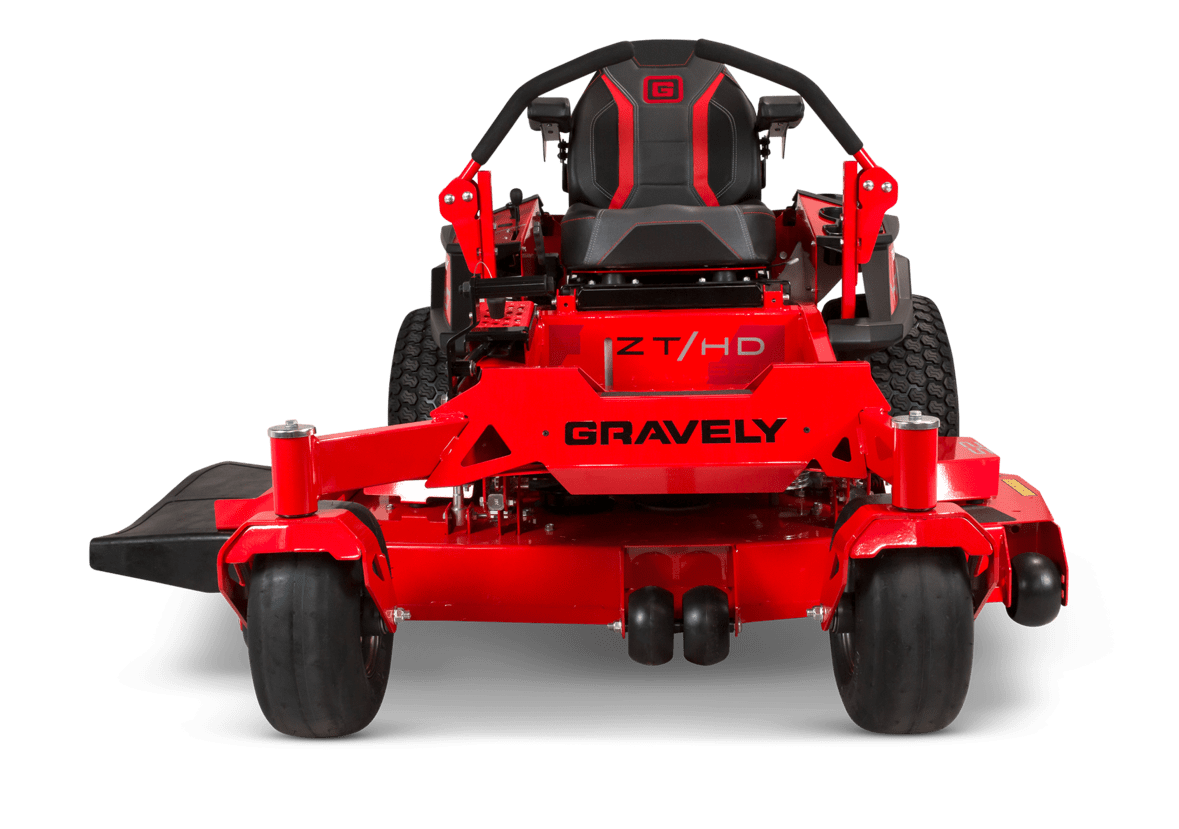

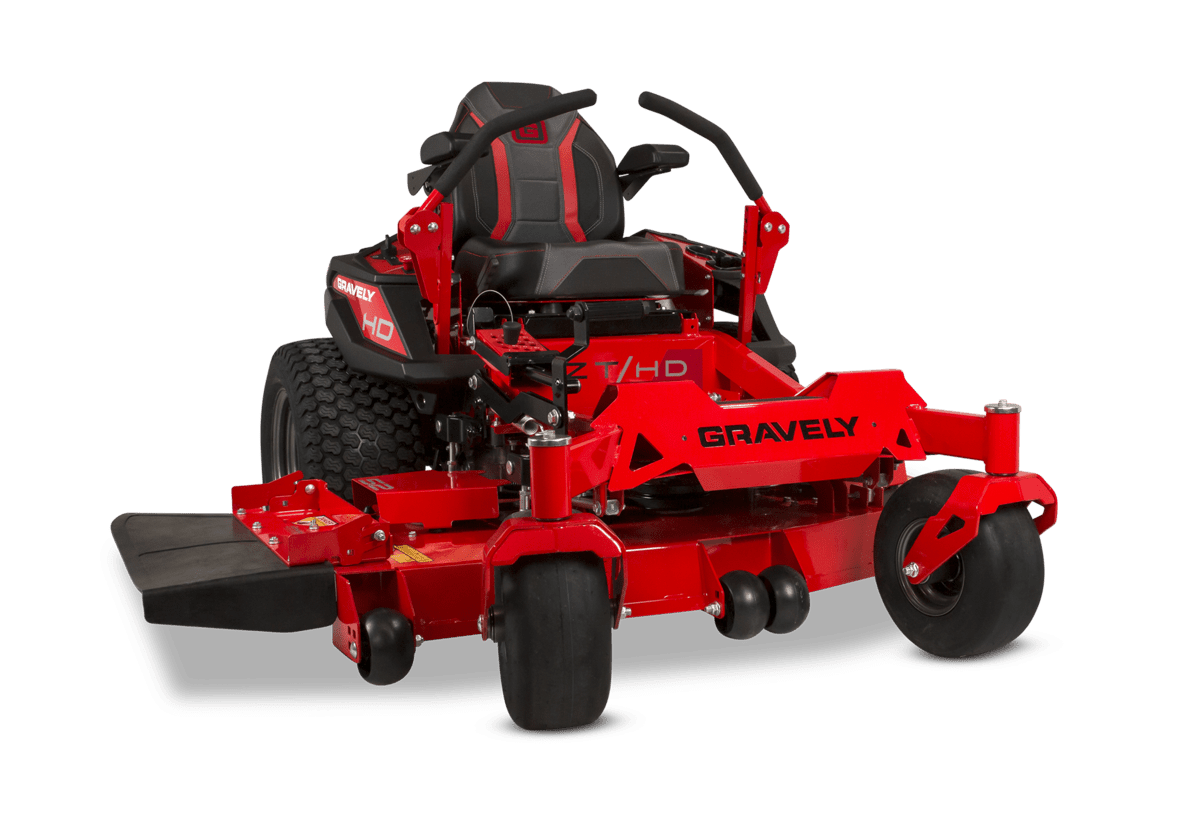

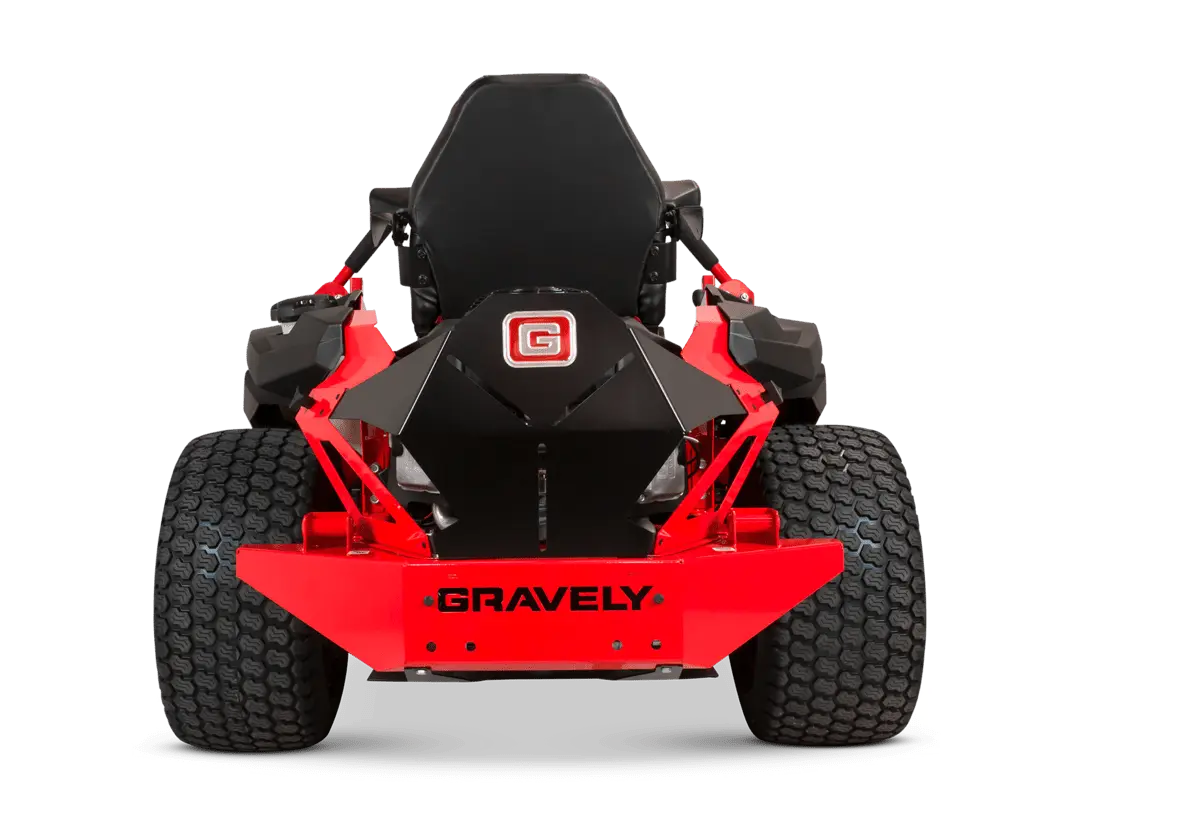

Gravely ZT HD 52" Zero-Turn Mower

The Gravely ZT HD 52" delivers commercial-level durability, power and precision, providing a premium residential mowing experience for perfectly manicured lawns.

Key Features
  • 15 Cutting Positions (38 mm – 127 mm)
  • Fabricated X-Factor® 3 Deck
  • Fully Welded Tubular Frame
  • 23 hp Kawasaki FR691 V-Twin Engine
The best of the best means a perfectly manicured lawn every mow. The Gravely ZT HD 52 Zero-Turn Mower combines commercial-grade durability with residential convenience, delivering outstanding performance, comfort and reliability. Designed with 15 cutting positions ranging from 38 mm to 127 mm, the ZT HD 52 allows precise height adjustments for a consistent and professional finish. The Fabricated X-Factor® 3 Deck, constructed from heavy-duty 10-gauge steel, improves airflow and grass dispersion to deliver superior cutting results and long-term durability. Powered by a 23 hp Kawasaki FR691V V-Twin engine, this mower delivers strong, dependable performance. Hydro-Gear ZT-3100 transaxles provide smooth drive control and increased durability suited to demanding mowing conditions. The fully welded tubular frame offers commercial-level structural strength, while comfort features including a high-back comfort seat with seat isolation and padded armrests, foot-operated deck lift, hour meter and cup holder improve operator experience during extended mowing sessions. Built for homeowners who demand professional-grade results, the Gravely ZT HD 52 delivers exceptional style, speed, comfort and cutting precision.
Warranty Information
Domestic Warranty4 Year / 500 Hour Domestic Warranty
Commercial Warranty4 Year / 500 Hour Commercial Warranty
Miscellaneous
Blade(s)3
Dimension Specs
Dry Weight385.5 kg
Height1194 mm
Width1427 mm With Chute Up
Overall Length2007 mm
Zero Turn Mower Specs
Ground Speed - ForwardUp to 12.8 km/h
BrakesHand Park Brake
SeatHigh Back Comfort W/ Seat Isolation & Padded Arm Rests
Hour MeterStandard
ROPSOptional Accessory
Cup HolderYes
Deck SystemFabricated X-Factor® 3
Deck LiftFoot Operated
Deck ConstructionFabricated 10 Gauge
Blade Tip Speed18,000 FPM
SpindlesForged Aluminium with sealed ball bearings
Drive SystemHydro-Gear ZT-3100 Transaxles
Engine and Fuel Specs
EngineKawasaki FR691V V-Twin
Engine (cc)726 cc
Horsepower23 hp
Fuel Capacity18.8 L
Mowing Deck Specs
Kit - MulchAvailable Optional Accessory
Cutting Dimensions
Cutting Widths52" (1320 mm) cut side discharge
Cutting Height(s)15 Cutting Positions / 38 mm – 127 mm

* Images shown may sometimes be from comparable models supplied by the manufacturer. Availability can change frequently, so we recommend contacting us to confirm current stock.
