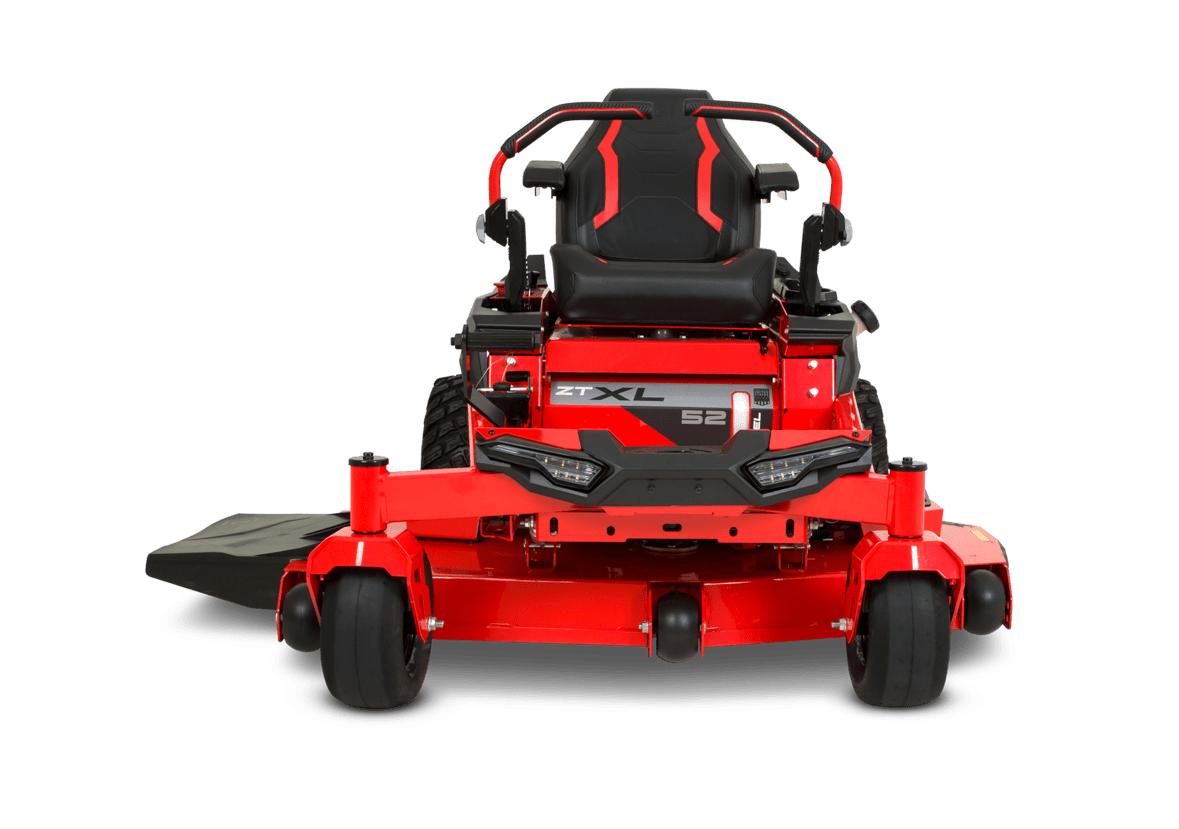

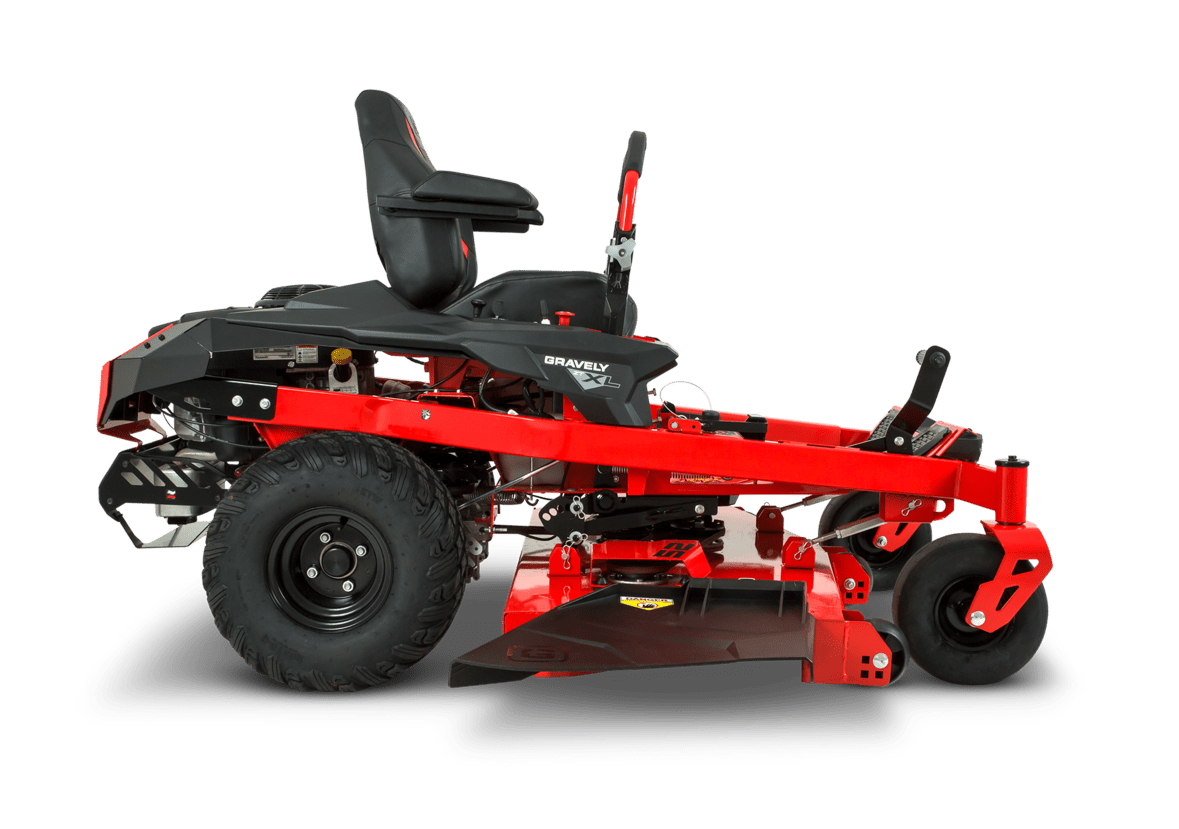

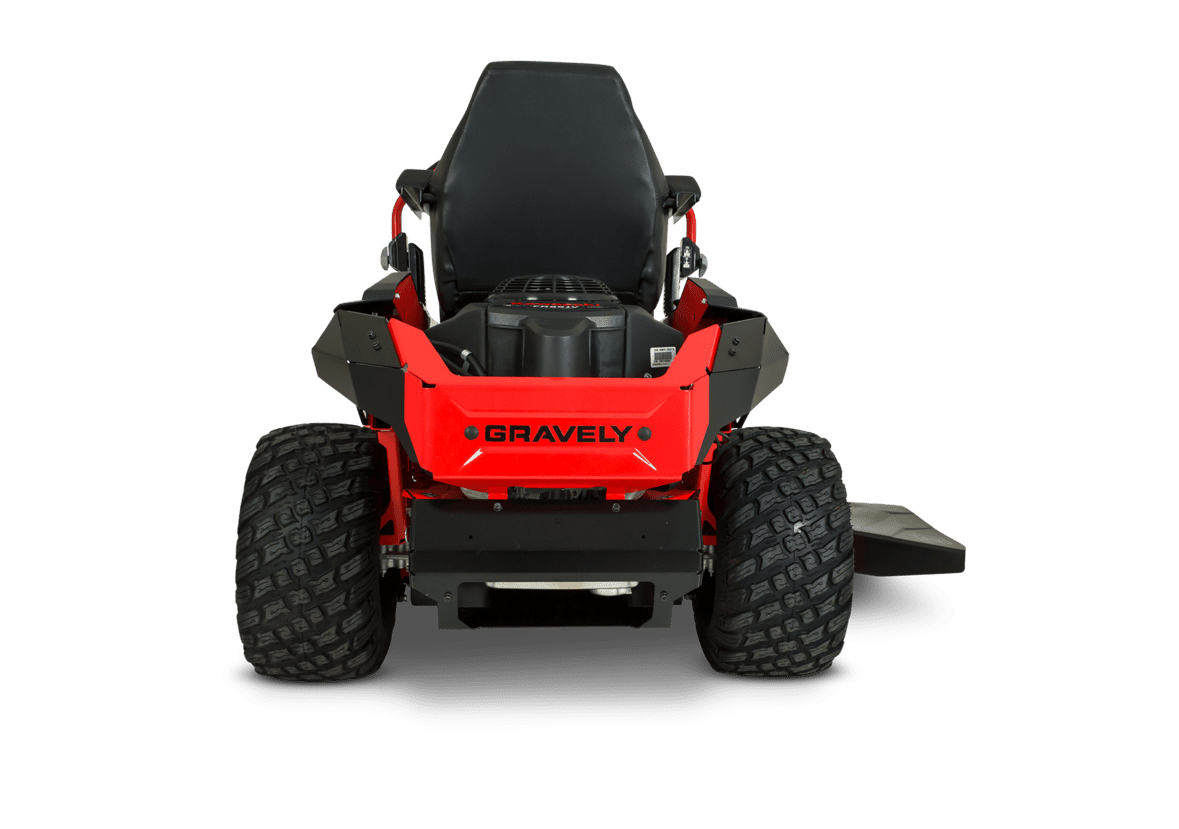

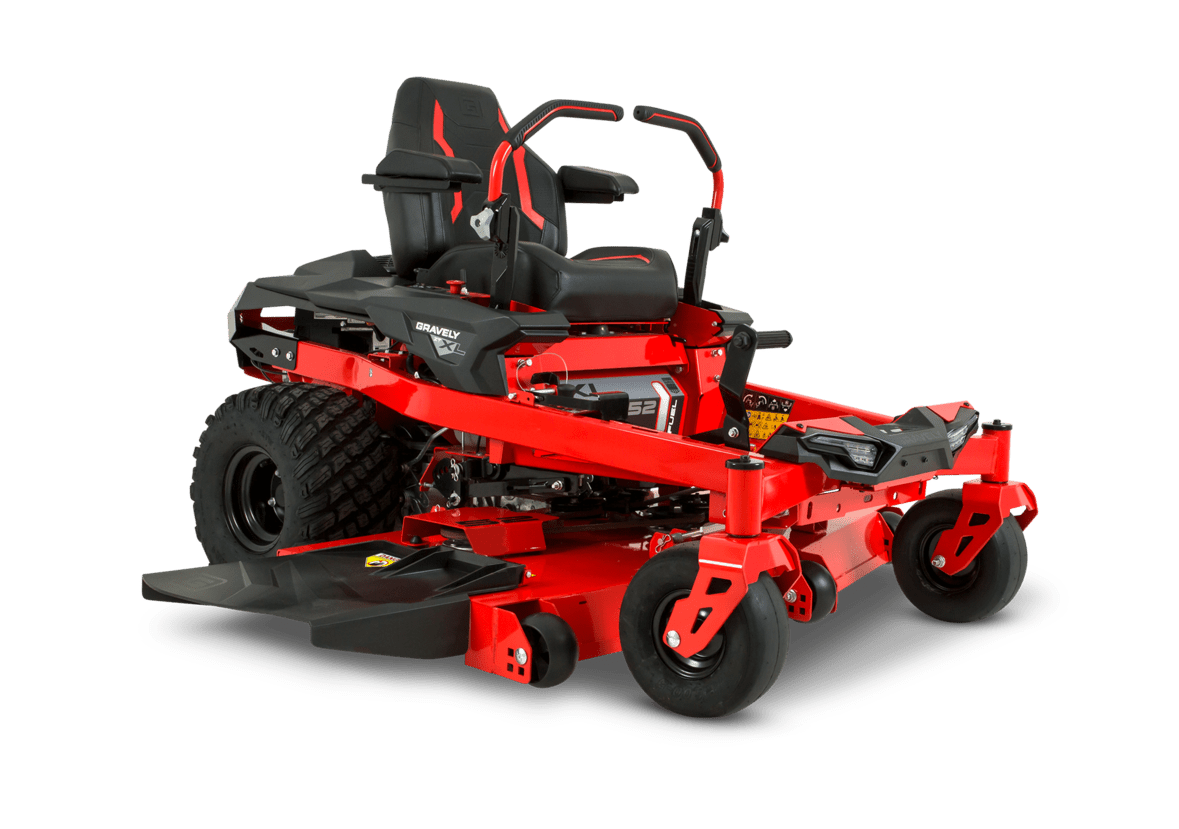

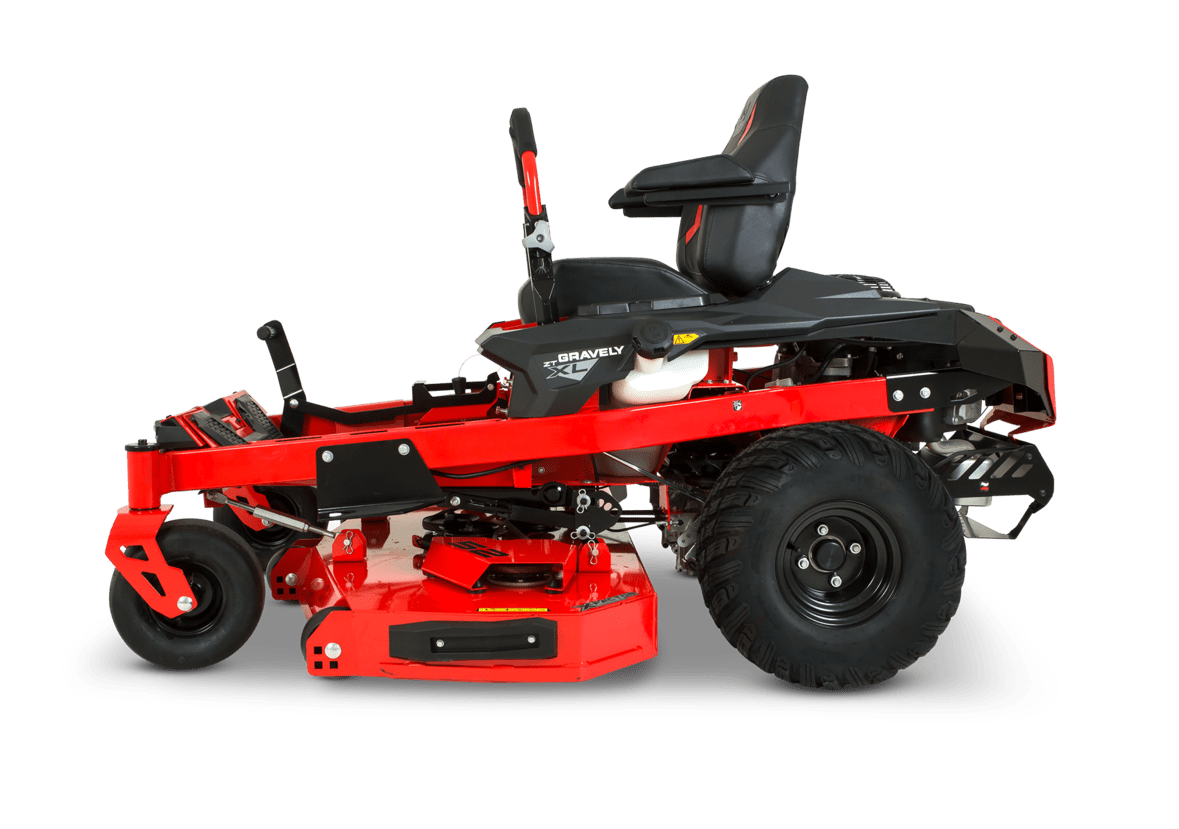

Gravely ZT XL 52" Zero-Turn Mower

The Gravely ZT XL 52" delivers commercial-inspired durability and performance in a heavy-duty residential zero-turn mower built to tackle larger properties with ease.

Key Features
  • 11-Gauge Fabricated Deck
  • 4-Point Deck Lift System
  • Fully Welded Tubular Frame
  • 23 hp Kawasaki FR691 V-Twin Engine
  • 13 Cutting Positions
  • Hydro-Gear® ZT-2800® Transaxles
An upgrade to any property, the Gravely ZT XL 52 Zero-Turn Mower combines commercial-grade construction with residential convenience to deliver outstanding mowing performance. Built with a fully welded tubular frame, the ZT XL 52 provides exceptional structural strength and long-term durability. Hydro-Gear® ZT-2800® transaxles deliver increased torque, smoother operation and extended component lifespan for demanding mowing conditions. The 4.5-inch deep 11-gauge fabricated X-Factor® deck is engineered with optimised airflow to produce best-in-class cut quality and discharge performance. The 4-point foot-operated deck lift system with 13 cutting positions allows simple and precise cutting height adjustments using an intuitive pedal and dial system. Powered by a 23 hp Kawasaki FR691V V-Twin engine, the ZT XL 52 provides dependable power for maintaining larger residential properties. Comfort features include a bolstered high-back seat with armrests, integrated park brake, hour meter and cup holder for convenience during extended mowing sessions. Built for homeowners who demand professional results, the Gravely ZT XL 52 delivers commercial-level performance and legendary Gravely reliability.
Warranty Information
Domestic Warranty4 Year / 400 Hour Domestic Warranty
Commercial Warranty4 Year / 400 Hour Commercial Warranty
Miscellaneous
Blade(s)3
Dimension Specs
Dry Weight319.7 kg
Height1194 mm
Width1412 mm With Chute Up
Overall Length1892 mm
Zero Turn Mower Specs
Ground Speed - ForwardUp To 11.3 km/h
BrakesSteering Arm Integrated Park Brake
SeatBolstered High Back Seat With Arm Rests
Hour MeterStandard
ROPSROPS Not Supplied With Units
Cup HolderYes
Deck SystemFabricated X-Factor®
Deck LiftFoot Operated
Deck Construction11 Gauge Fabricated
Blade Tip Speed18,000 FPM
SpindlesForged Aluminium with sealed ball bearings
Drive SystemHydro-Gear® ZT-2800® Transaxles
Engine and Fuel Specs
EngineKawasaki FR691V V-Twin
Engine (cc)726 cc
HP23 hp
Fuel Capacity13.2 L
Mowing Deck Specs
Kit - MulchAvailable Optional Accessory
Cutting Dimensions
Cutting Widths52″ (1320 mm) Cut Side Discharge
Cutting Height(s)13 Cutting Positions / 38 mm – 114 mm

* Images shown may sometimes be from comparable models supplied by the manufacturer. Availability can change frequently, so we recommend contacting us to confirm current stock.
