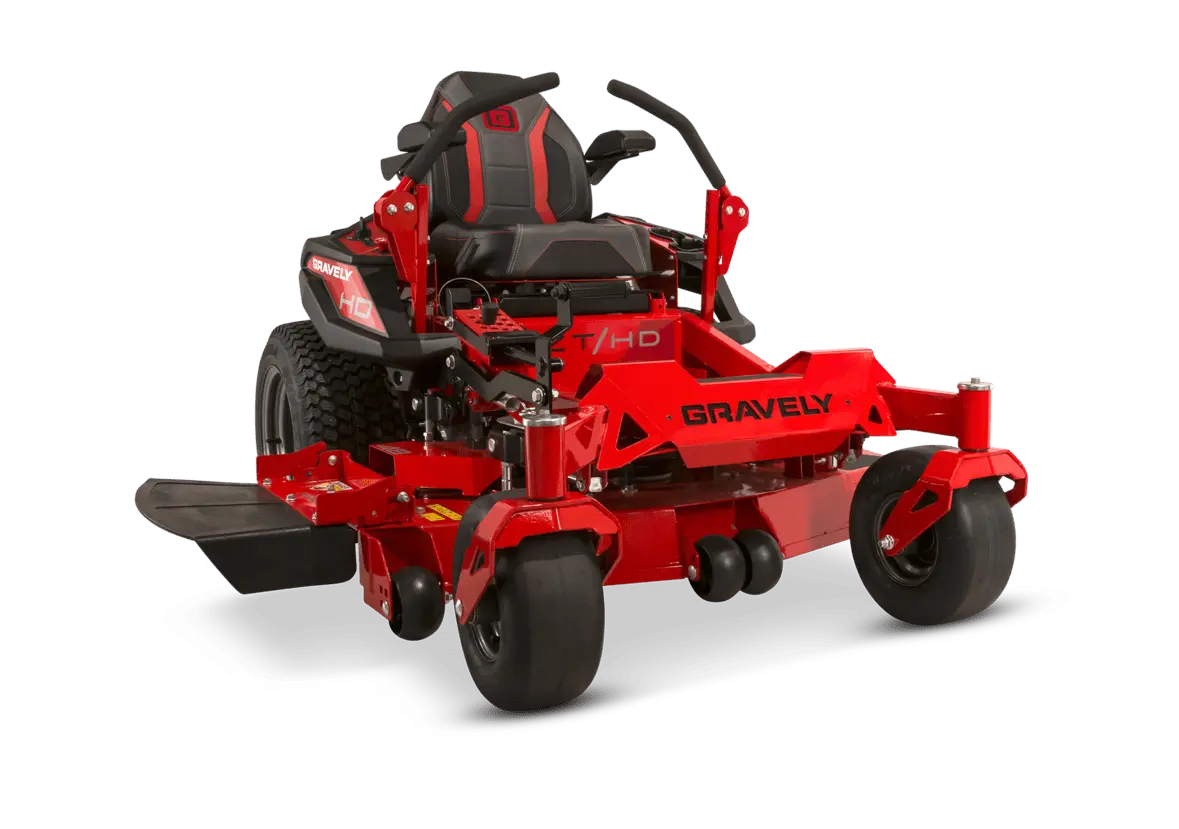

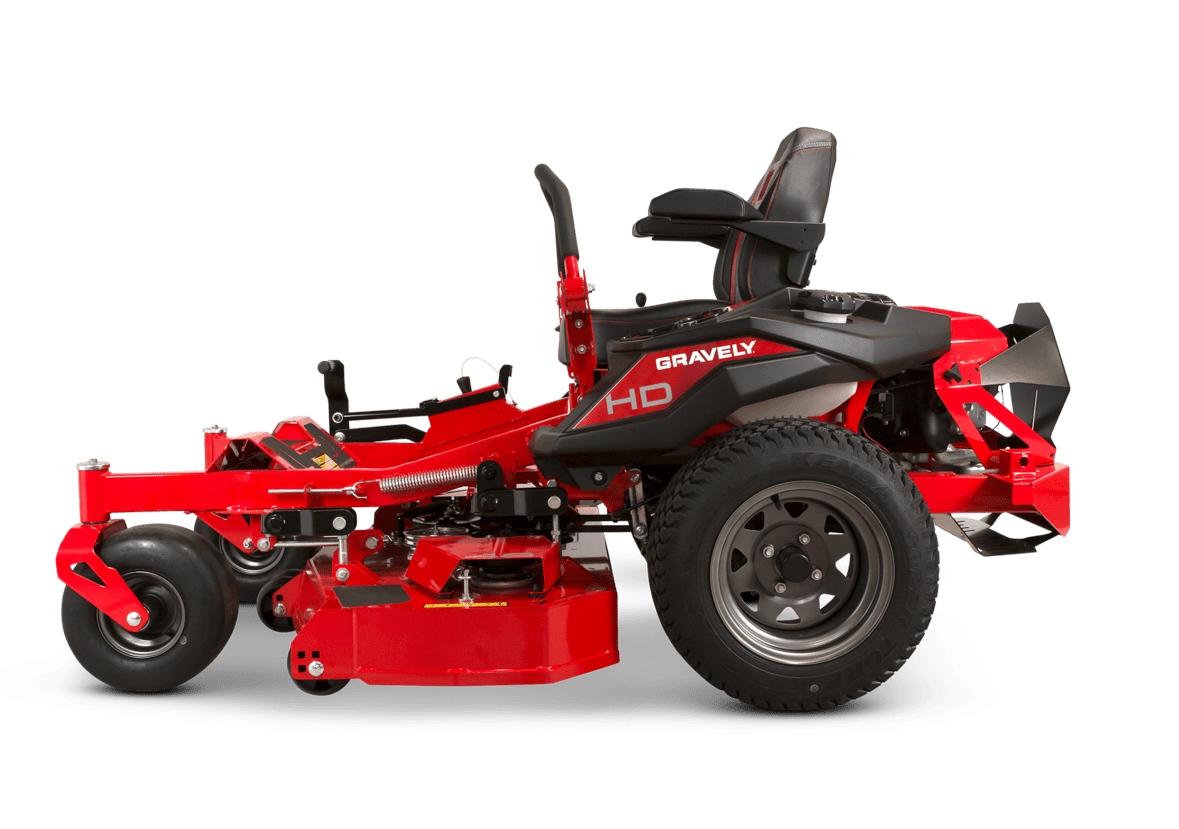

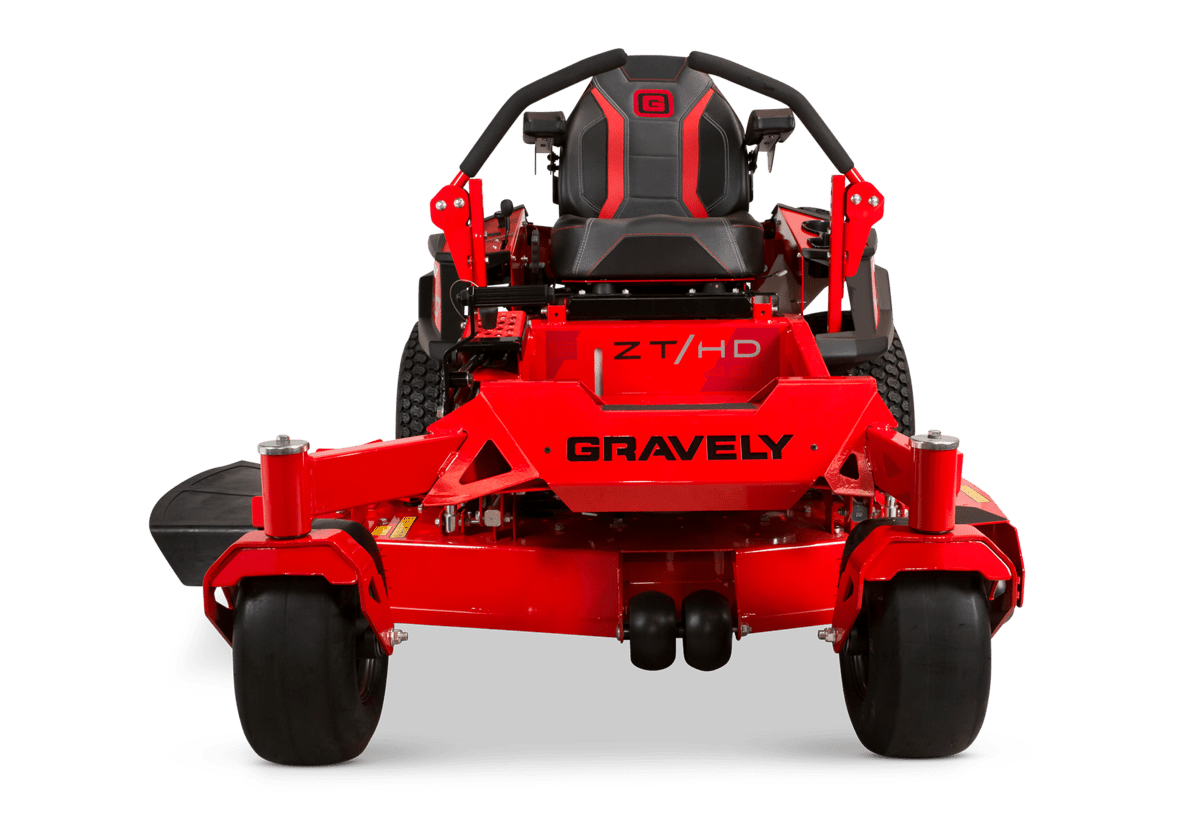

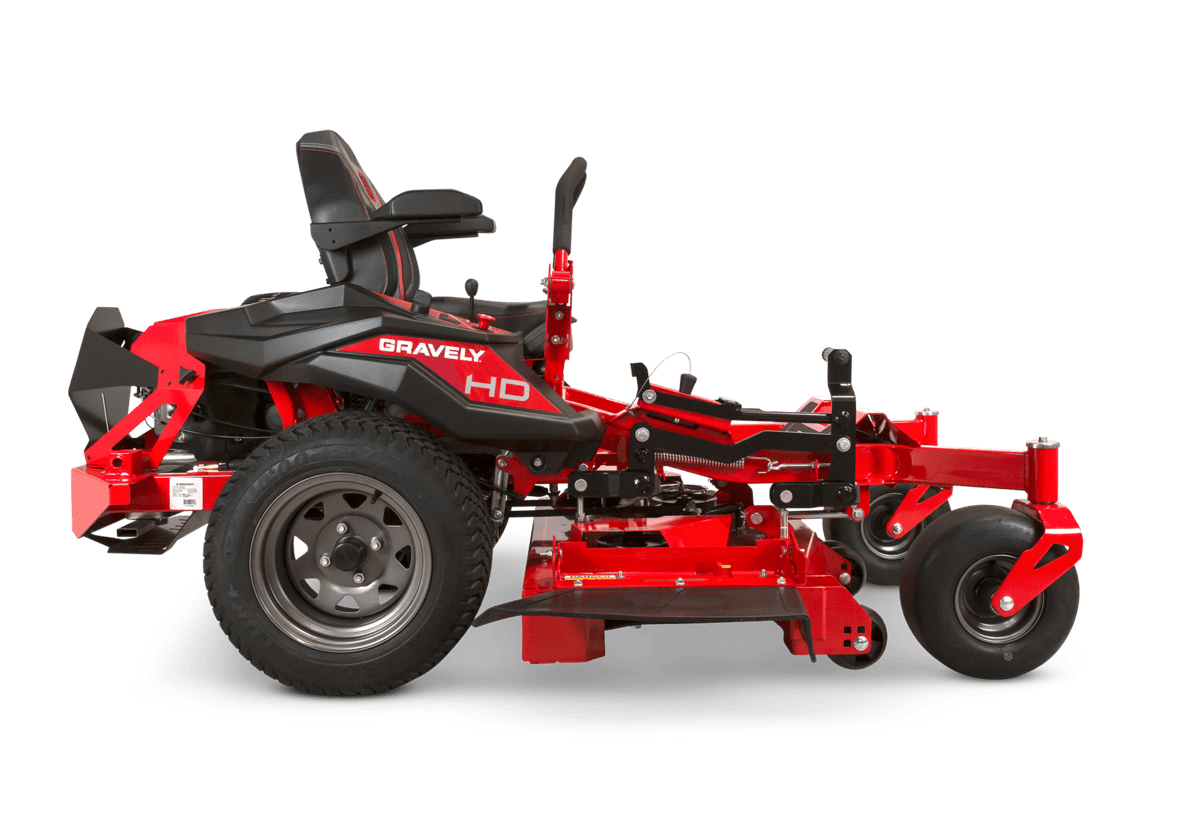

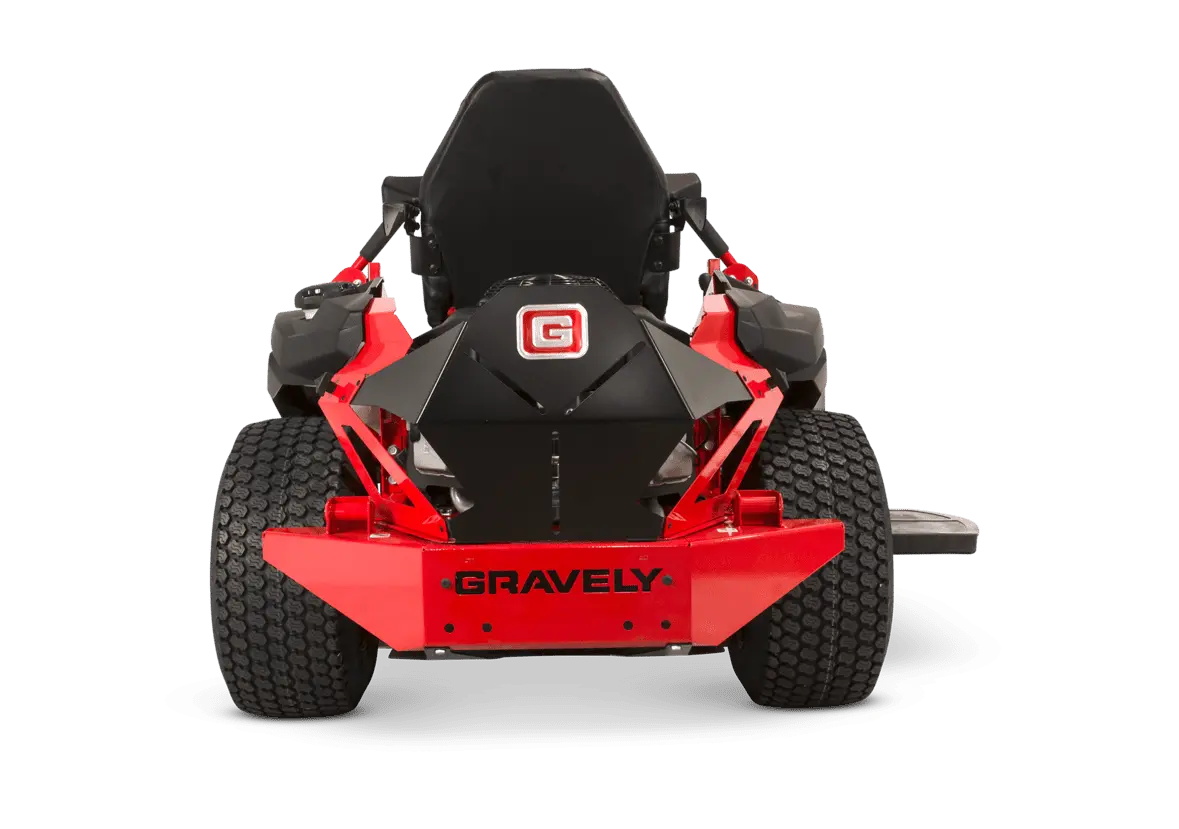

Gravely ZT HD 48" Zero Turn Mower

The Gravely ZT HD 48" elevates expectations with commercial-inspired durability, redesigned deck performance and powerful Kawasaki V-Twin performance in a premium residential zero-turn mower.

Key Features
  • 15 Cutting Positions (1.5" – 5")
  • Fabricated X-Factor® 3 Deck
  • Fully Welded Tubular Frame
  • 23 hp Kawasaki FR691 V-Twin Engine
Expectations elevated. The Gravely ZT HD 48 Zero Turn Mower blends commercial-grade strength with residential usability, delivering exceptional cutting performance, comfort and durability. Designed with 15 cutting positions ranging from 1.5 inches to 5 inches (38 mm – 127 mm), the ZT HD 48 provides precise height adjustment for a consistently clean and professional finish. The redesigned Fabricated X-Factor® 3 Deck, constructed from 10-gauge steel, improves airflow and grass dispersion for superior cut quality and long-term performance. Powered by a 23 hp Kawasaki FR691V V-Twin engine, this mower delivers strong, reliable performance. Hydro-Gear ZT-3100 transaxles provide smooth drive control and durability suited for demanding residential use. The fully welded tubular frame offers commercial-level structural integrity, while comfort features such as a high-back comfort seat with seat isolation and padded armrests, foot-operated deck lift, hour meter and cup holder enhance the operator experience. Built for homeowners who demand more style, speed, comfort and precision, the Gravely ZT HD 48 delivers professional performance with lasting reliability.
Warranty Information
Domestic Warranty4 Year / 500 Hour
Commercial Warranty4 Year / 500 Hour
Miscellaneous
Blade(s)3
Dimension Specs
Dry Weight374.2 kg
Height1194 mm
Width1290 mm With Chute Up
Overall Length2007 mm
Zero Turn Mower Specs
Ground Speed - ForwardUp To 12.8 km/h
BrakesHand Park Brake
SeatHigh Back Comfort W/ Seat Isolation & Padded Arm Rests
Hour MeterStandard
ROPSOptional Accessory
Cup HolderYes
Deck SystemFabricated X-Factor® 3
Deck LiftFoot Operated
Deck ConstructionFabricated 10 Gauge
Blade Tip Speed18,000 FPM
SpindlesForged Aluminium with sealed ball bearings
Drive SystemHydro-Gear ZT-3100 Transaxles
Engine and Fuel Specs
EngineKawasaki FR691V V-Twin
Engine (cc)726 cc
HP23 HP
Fuel Capacity18.8 L
Mowing Deck Specs
Kit - MulchAvailable Optional Accessory
Cutting Dimensions
Cutting Widths48" (1219 mm) cut side discharge
Cutting Height(s)15 Cutting Positions / 38 mm – 127 mm

* Images shown may sometimes be from comparable models supplied by the manufacturer. Availability can change frequently, so we recommend contacting us to confirm current stock.
