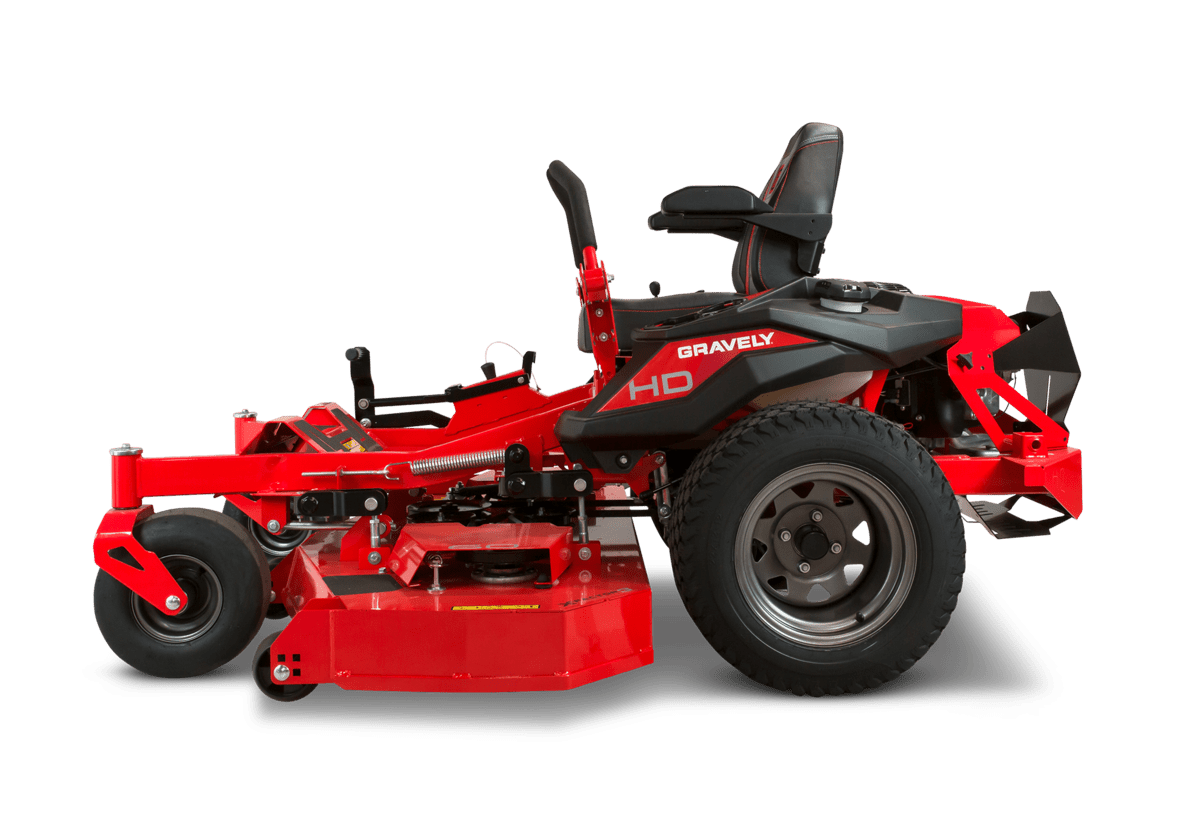

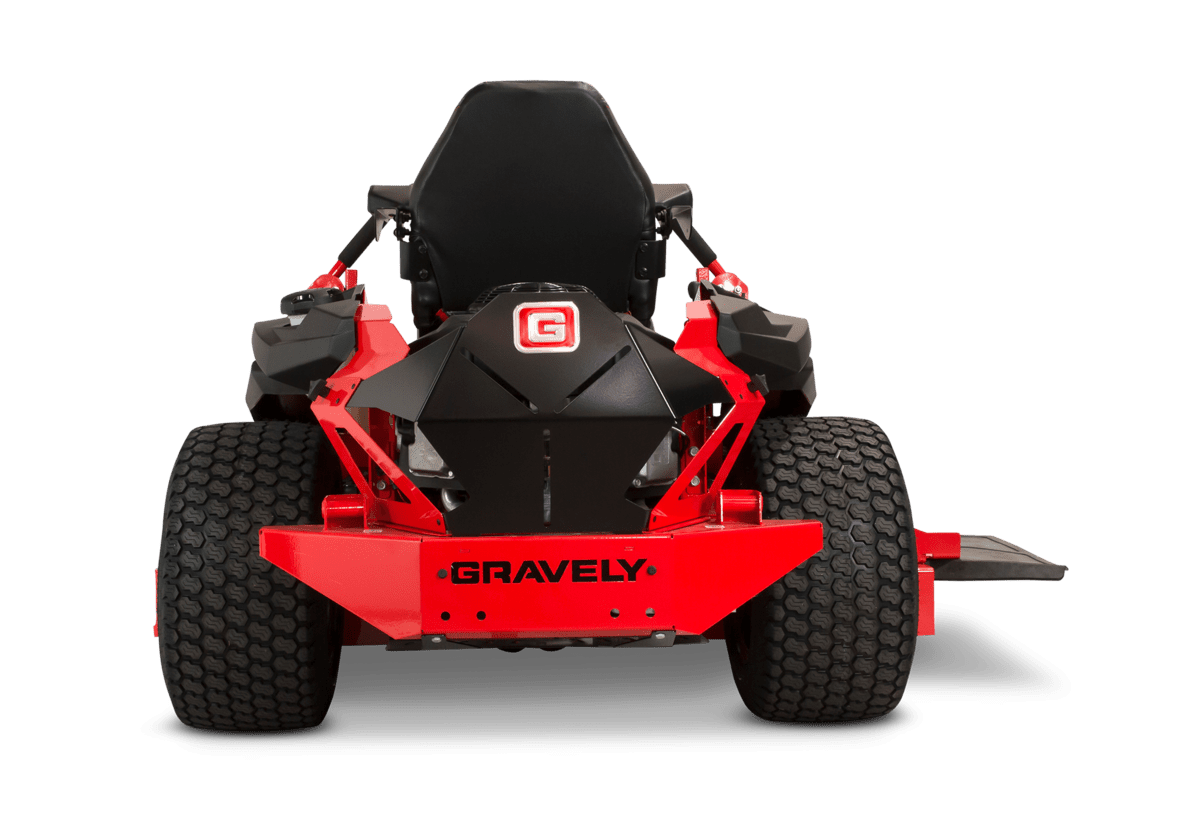

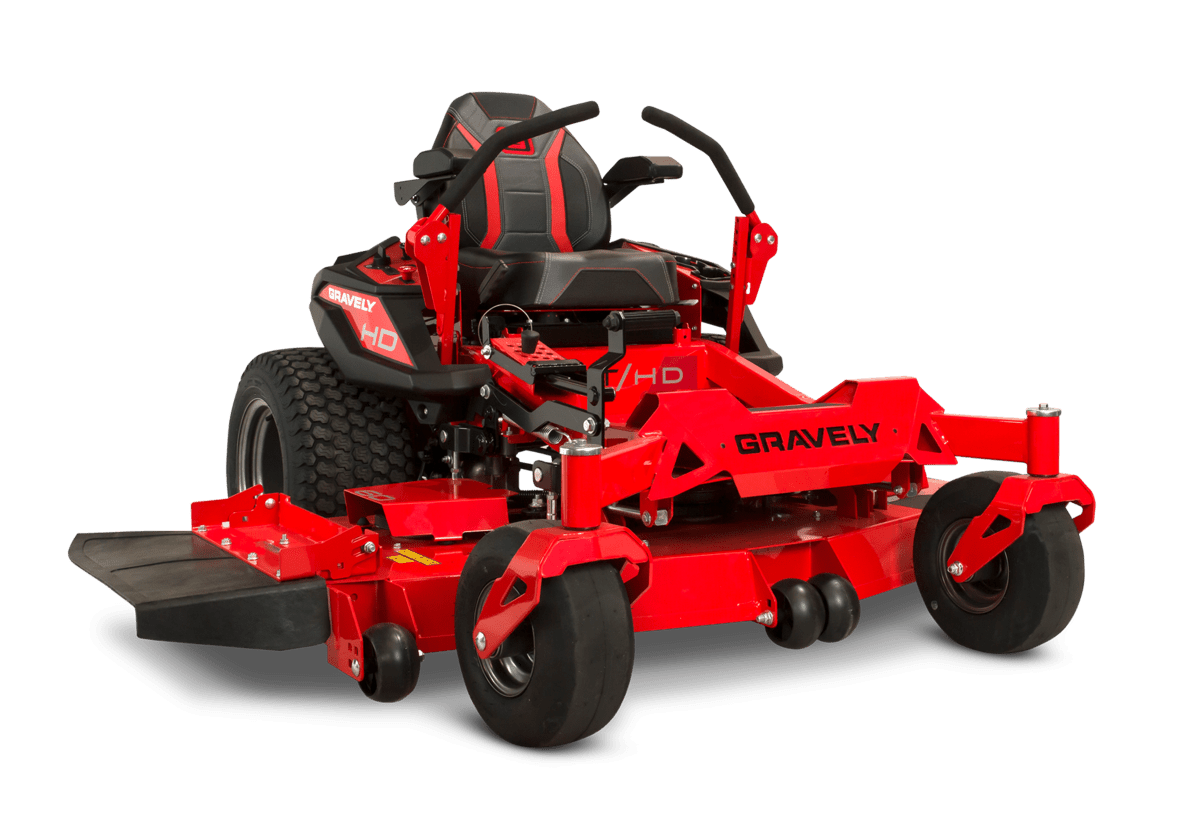

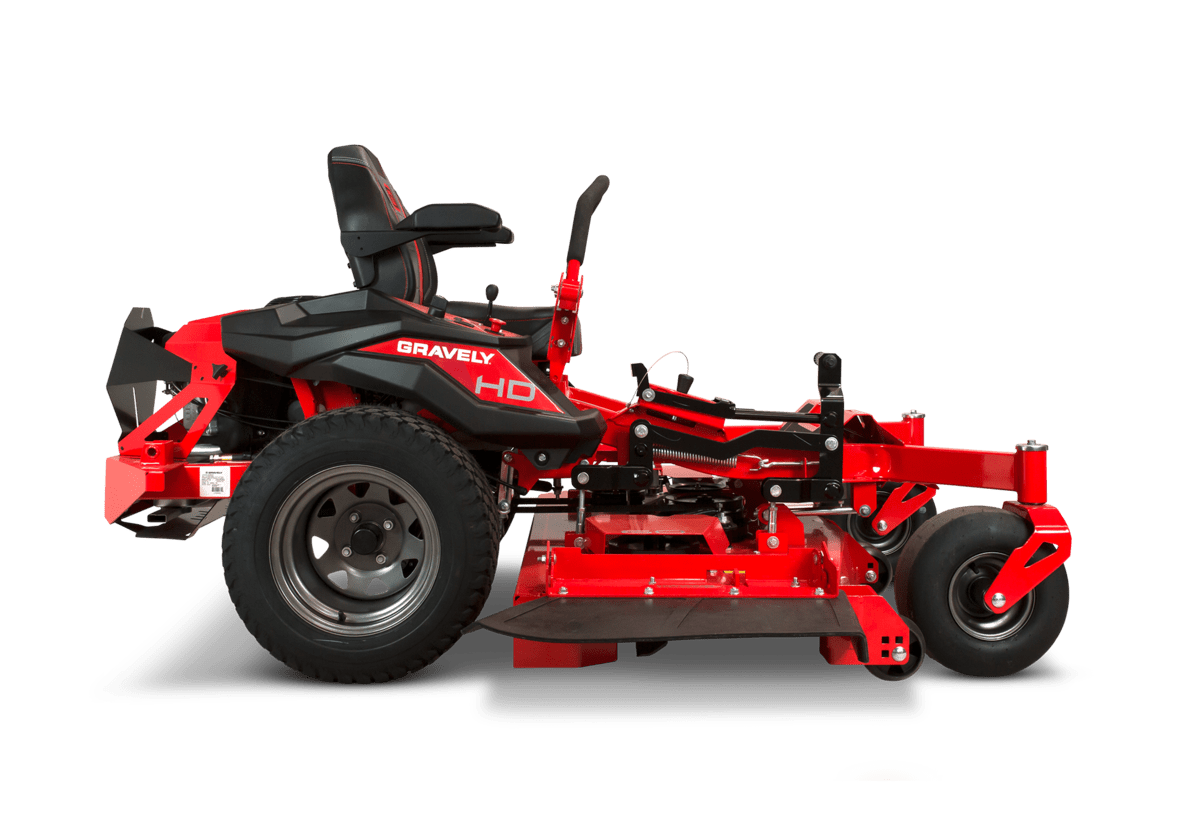

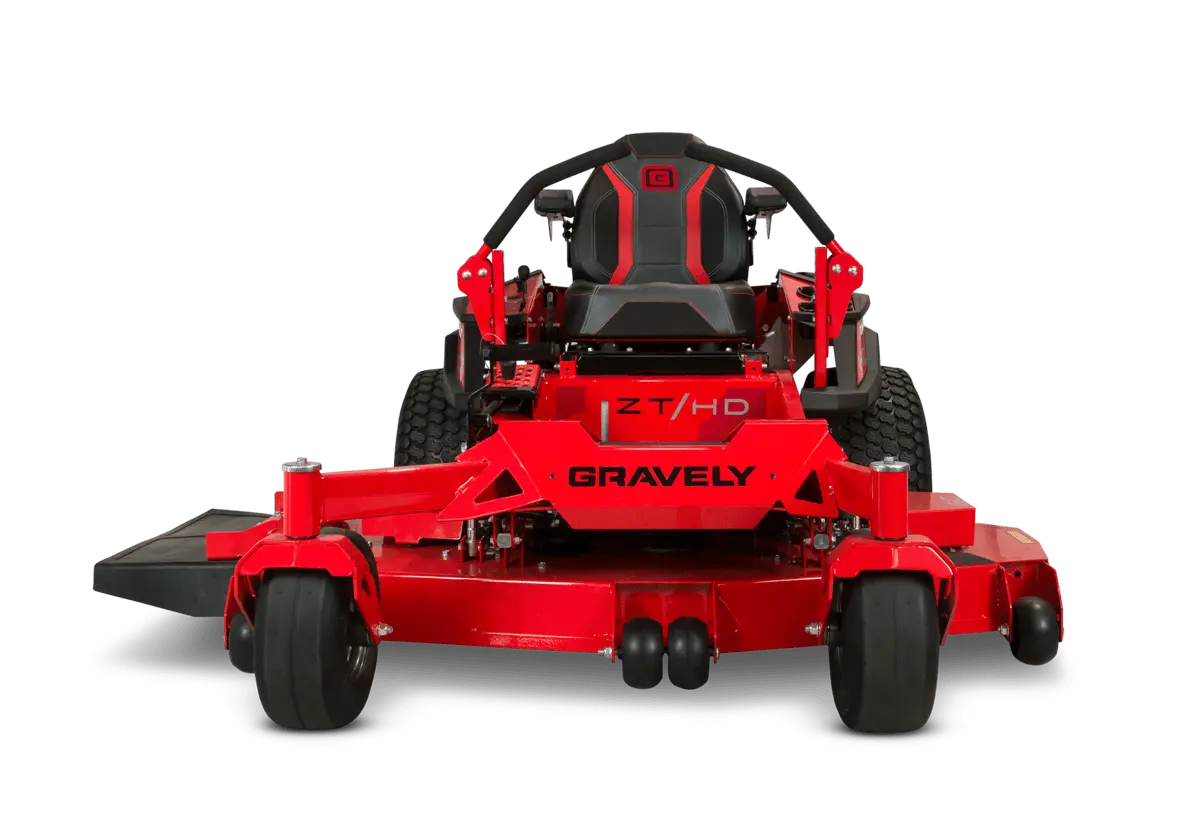

Gravely ZT HD 60" Zero-Turn Mower

The Gravely ZT HD 60" delivers high-powered commercial-style performance, precision and durability in a premium residential zero-turn mower designed for larger properties.

Key Features
  • 15 Cutting Positions (38 mm – 127 mm)
  • Fabricated X-Factor® 3 Deck
  • Fully Welded Tubular Frame
  • 24 hp Kawasaki FR730 V-Twin Engine
Expectations elevated. The Gravely ZT HD 60 Zero-Turn Mower combines commercial-grade performance with residential convenience, delivering exceptional cutting power, durability and operator comfort. Powered by a 24 hp Kawasaki FR730V V-Twin engine and supported by an 18.8 litre fuel capacity, the ZT HD 60 is built for extended mowing sessions across large properties. The Fabricated X-Factor® 3 Deck, constructed from heavy-duty 10-gauge steel, is engineered with improved airflow and grass dispersion to produce superior cut quality and consistent discharge performance. With 15 cutting positions ranging from 38 mm to 127 mm, the mower allows precise height adjustment for professional-grade lawn finishes. Hydro-Gear ZT-3100 transaxles provide smooth drive control and durability suited to demanding mowing conditions. The fully welded tubular frame provides commercial-level structural strength, while comfort features such as a high-back comfort seat with seat isolation and padded armrests, foot-operated deck lift, hour meter and cup holder improve the operator experience during extended mowing tasks. Designed for homeowners who demand top-tier performance, style, speed and cutting precision, the Gravely ZT HD 60 delivers professional results with legendary Gravely reliability.
Warranty Information
Domestic Warranty4 Year / 500 Hour Domestic Warranty
Commercial Warranty4 Year / 500 Hour Commercial Warranty
Dimension Specs
Dry Weight394.6 kg
Height1194 mm
Width1618 mm With Chute Up
Overall Length2007 mm
Zero Turn Mower Specs
Ground Speed - ForwardUp to 12.8 km/h
BrakesHand Park Brake
SeatHigh Back Comfort W/ Seat Isolation & Padded Arm Rests
Hour MeterStandard
ROPSOptional
Cup HolderYes
Deck SystemFabricated X-Factor® 3
Deck LiftFoot Operated
Deck ConstructionFabricated 10 Gauge
Blade Tip Speed18,000 FPM
SpindlesForged Aluminium with sealed ball bearings
Drive SystemHydro-Gear ZT-3100 Transaxles
Engine and Fuel Specs
EngineKawasaki FR730V V-Twin
Engine (cc)726 cc
Horsepower24 hp
Fuel Capacity18.8 L
Mowing Deck Specs
Kit - MulchAvailable Optional Accessory
Cutting Dimensions
Cutting Widths60" (1524 mm) cut side discharge
Cutting Height(s)15 Cutting Positions / 38 mm – 127 mm

* Images shown may sometimes be from comparable models supplied by the manufacturer. Availability can change frequently, so we recommend contacting us to confirm current stock.
