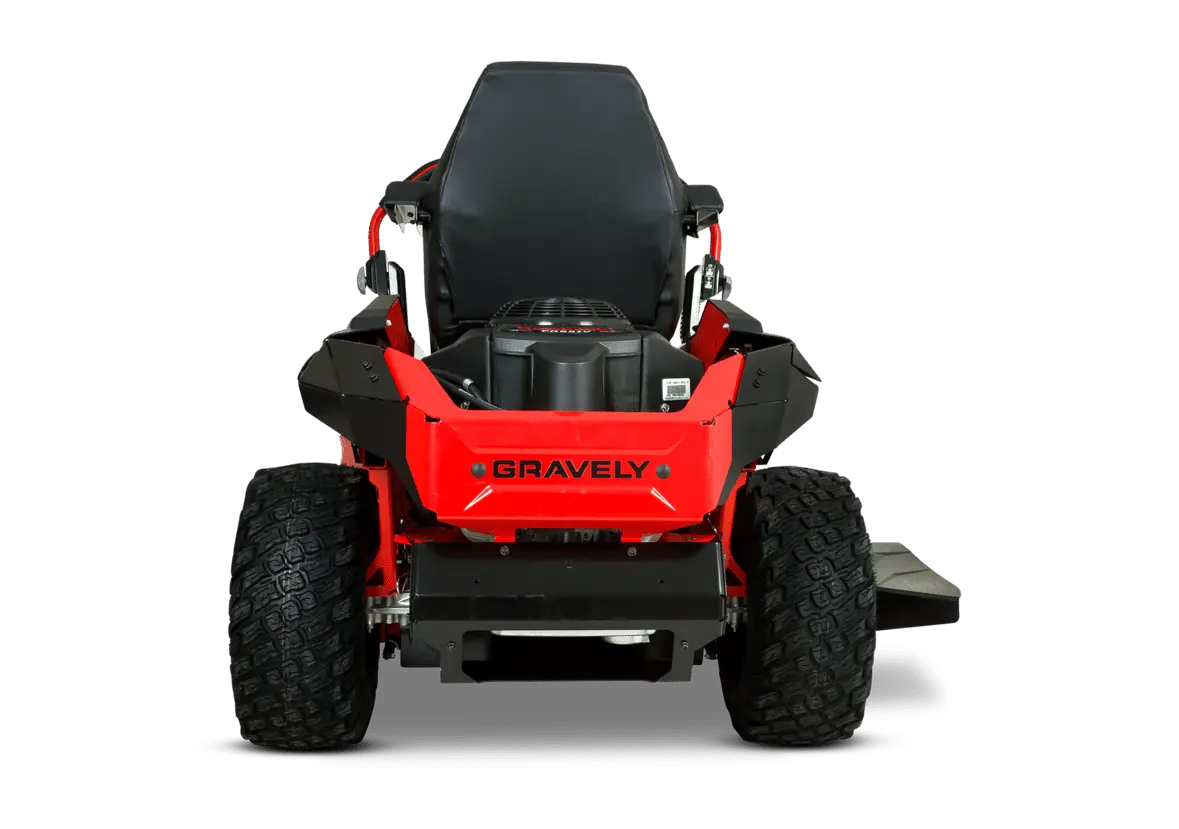

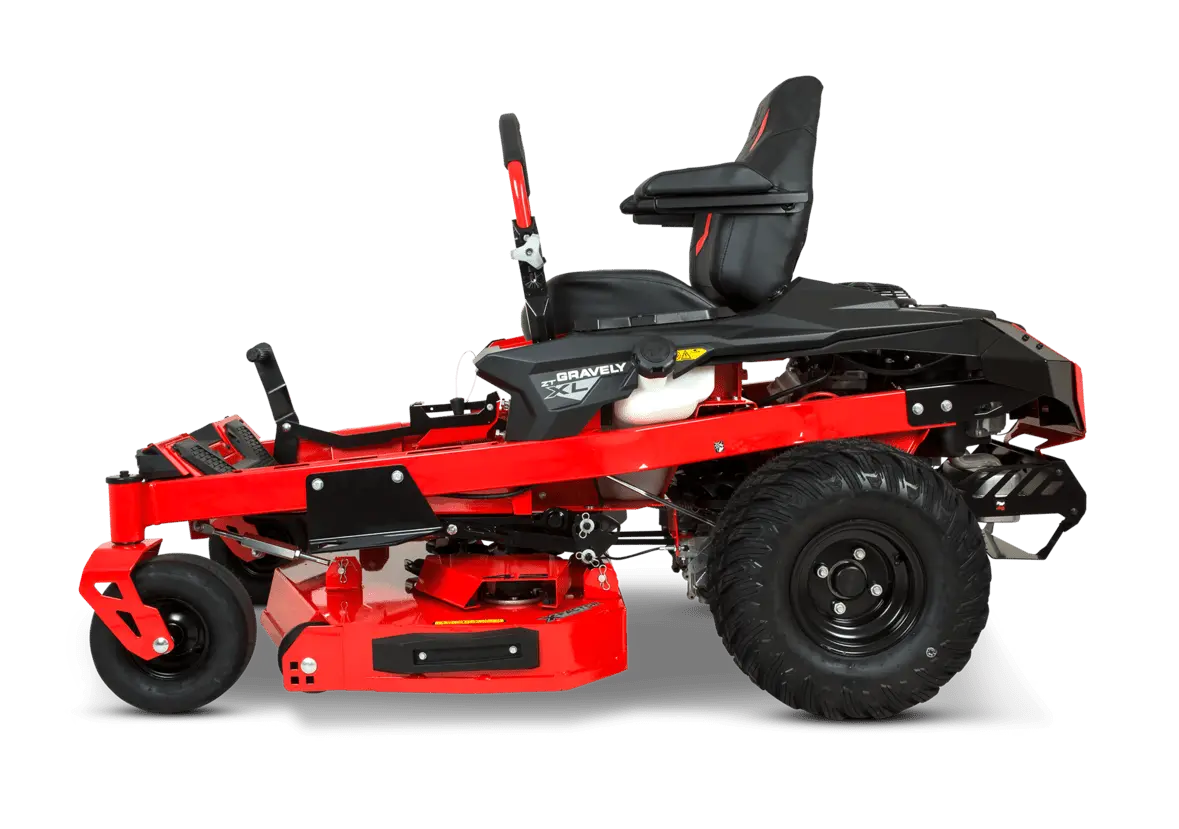

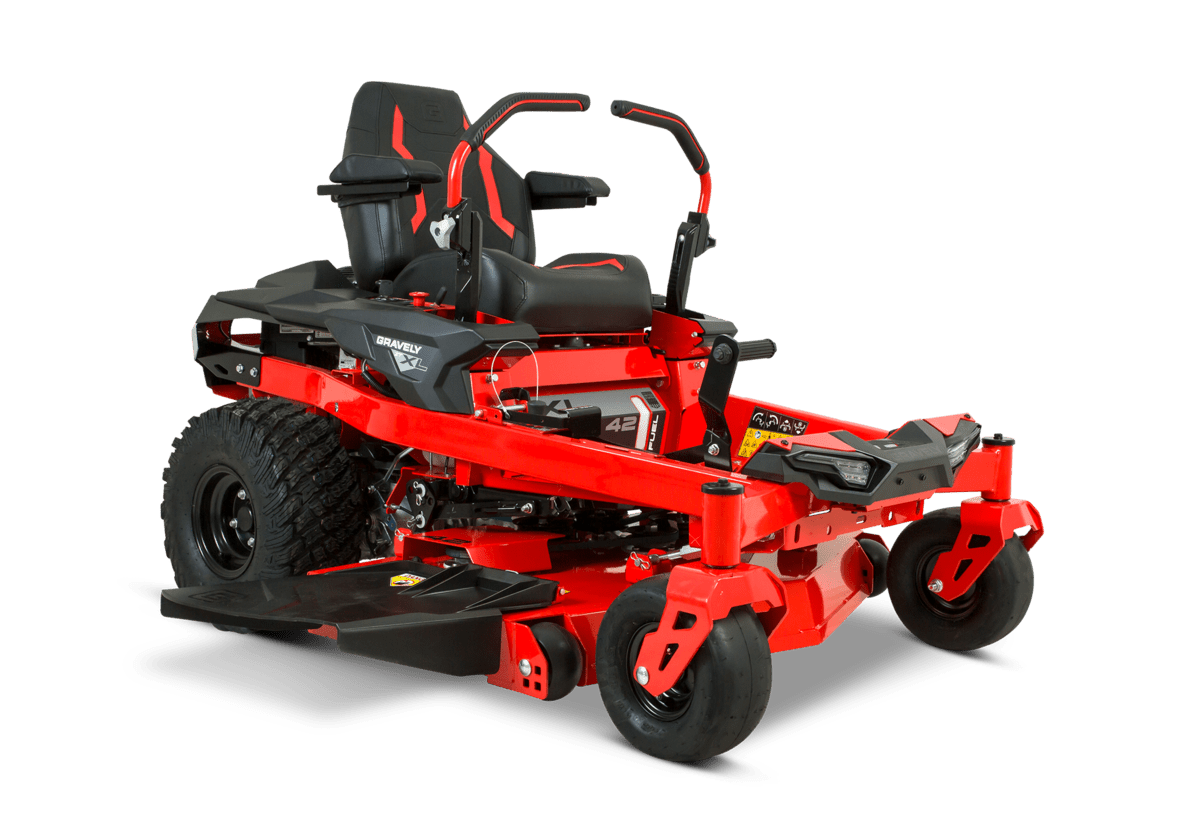

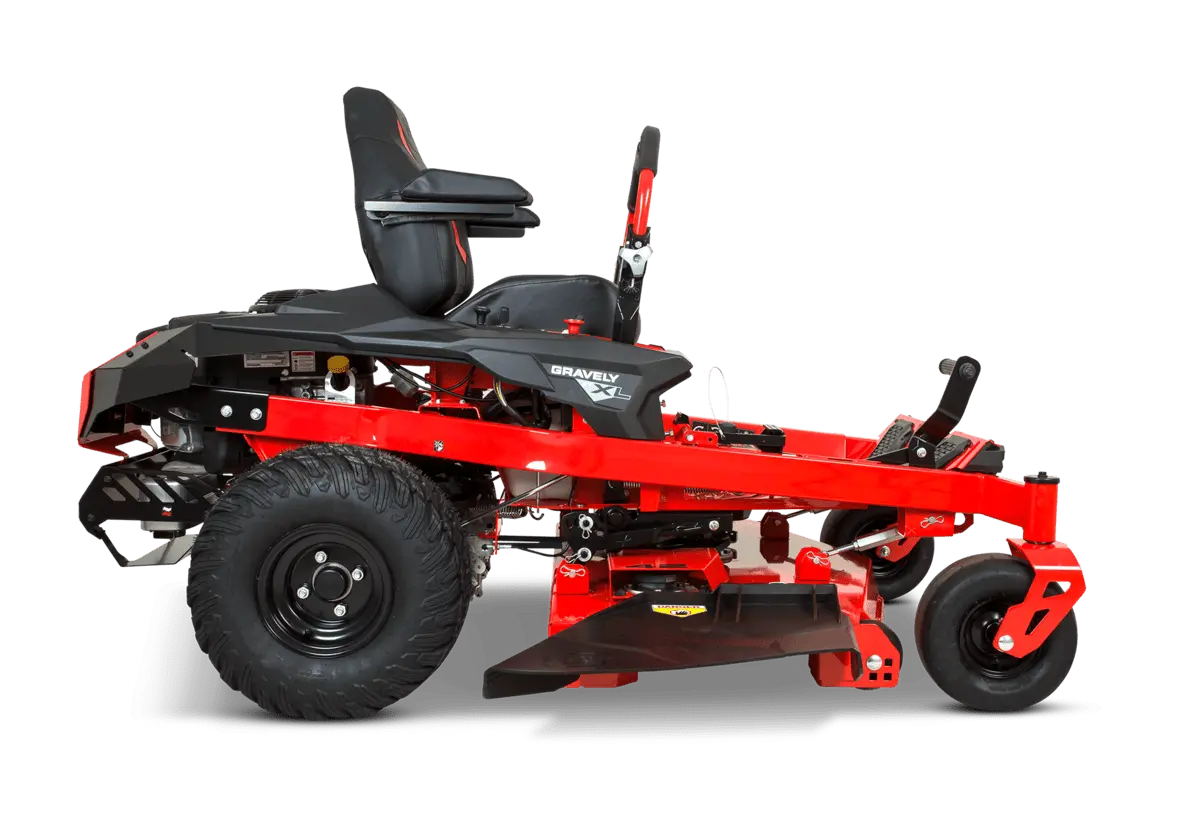

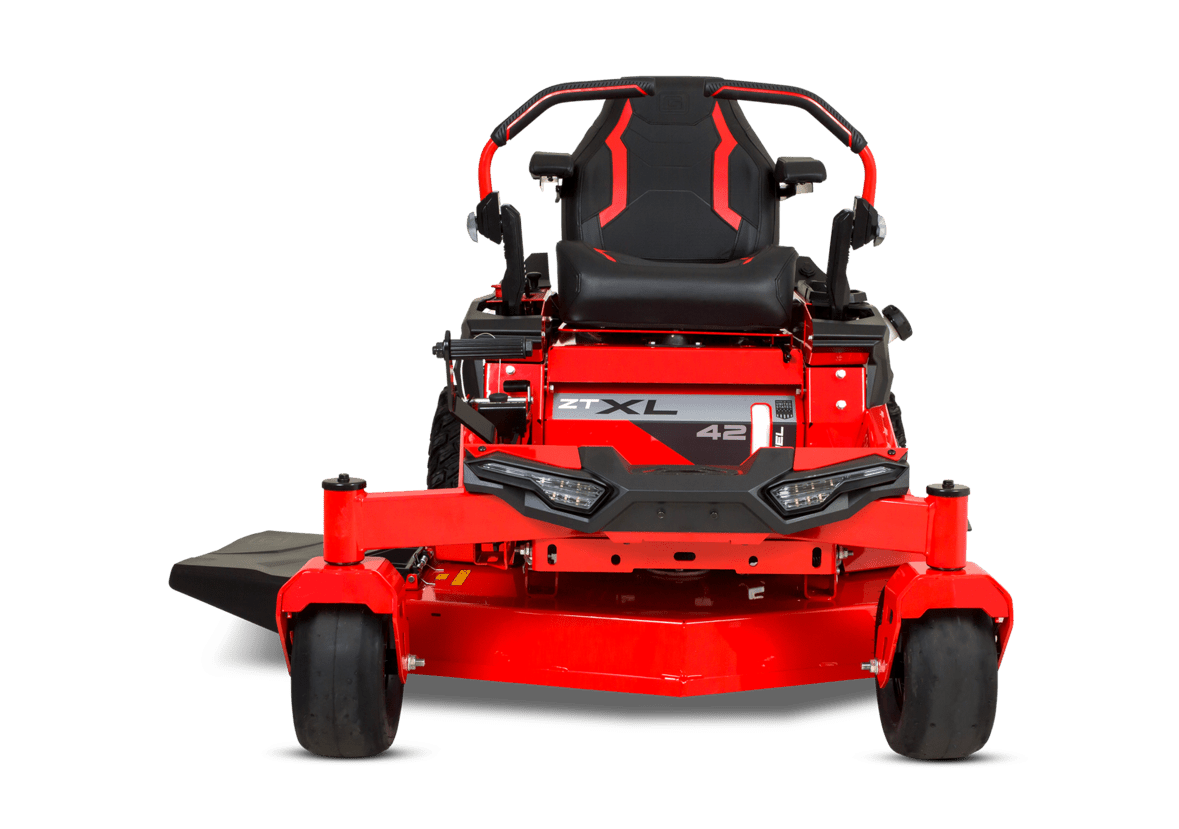

Gravely ZT XL 42" Zero-Turn Mower

The Gravely ZT XL 42" cuts big jobs down to size with heavy-duty construction, commercial-inspired components and legendary Gravely zero-turn performance.

Key Features
  • 11-Gauge Fabricated Deck
  • 4-Point Deck Lift System
  • Fully Welded Tubular Frame
  • 21.5 hp Kawasaki FR651 V-Twin Engine
  • 13 Cutting Positions
  • Hydro-Gear® ZT-2800® Transaxles
Cuts big jobs down to size, the Gravely ZT XL 42 Zero-Turn Mower blends residential convenience with commercial-grade strength. Built with a fully fabricated tubular frame welded into a single-piece backbone, the ZT XL 42 delivers exceptional structural integrity and long-term durability beyond typical multi-section bolted frames. Equipped with Hydro-Gear® ZT-2800® transaxles, this mower provides increased torque, smoother operation and extended component life. The 11-gauge, 4.5-inch deep fabricated X-Factor® deck features optimised airflow for superior cut quality and discharge performance. Powered by a 21.5 hp Kawasaki FR651V V-Twin engine, the ZT XL 42 offers dependable power for demanding residential properties. The 4-point foot-operated deck lift system with 13 cutting positions allows precise height adjustments using a simple pedal-and-dial system. Comfort features include a bolstered high-back seat with armrests, steering arm integrated park brake, hour meter and cup holder. Built for homeowners tackling larger jobs, the Gravely ZT XL 42 delivers commercial-style performance in a residential package.
Warranty Information
Domestic Warranty4 Year / 400 Hour Domestic Warranty
Commercial Warranty4 Year / 400 Hour Commercial Warranty
Miscellaneous
Blade(s)3
Dimension Specs
Dry Weight306.1 kg
Height1194 mm
Width1145 mm With Chute Up
Overall Length1892 mm
Zero Turn Mower Specs
Ground Speed - ForwardUp to 11.3 km/h
BrakesSteering Arm Integrated Park Brake
SeatBolstered High Back Seat With Arm Rests
Hour MeterStandard
ROPSROPS Not Supplied With Units
Cup HolderYes
Deck SystemFabricated X-Factor®
Deck LiftFoot Operated
Deck Construction11 Gauge Fabricated
Blade Tip Speed18,000 FPM
SpindlesForged Aluminium with sealed ball bearings
Drive SystemHydro-Gear® ZT-2800® Transaxles
Engine and Fuel Specs
EngineKawasaki FR651V V-Twin
Engine (cc)726 cc
Horsepower21.5 hp
Fuel Capacity13.2 L
Mowing Deck Specs
Kit - MulchAvailable Optional Accessory
Cutting Dimensions
Cutting Widths42″ (1067 mm) Cut Side Discharge
Cutting Height(s)13 Cutting Positions / 38 mm – 114 mm

* Images shown may sometimes be from comparable models supplied by the manufacturer. Availability can change frequently, so we recommend contacting us to confirm current stock.
